Audio Technica BP4029
Shotgun microfoon; 236 mm
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K023585
Based on models originally developed for use in the broadcast of the Sydney
Games in 2000, the BP4027 (14.96" long) and BP4029 (9.29" long) Stereo Shotgun
models are engineered for high-end broadcast and production use. Both
microphones feature independent line-cardioid and figure-of-eight elements
configured in an MS (Mid-Side) arrangement with switch-selectable internal
matrixing.
These innovative microphones allow sound recordists the choice of
selecting a left-right stereo output (wide or narrow) via the microphone’s
internal matrixing system or choosing discrete Mid-Side signals for later
manipulation, a flexibility not available from any other manufacturer. A
switchable low frequency roll-off filter helps minimize the pickup of unwanted
low frequency noise.
These phantom-powered models feature a rugged lightweight
design and sleek black color scheme, perfect for on-camera use.
Designed for broadcasters, videographers and sound recordists
Compact, lightweight design is perfect for camera-mount use
Independent Line-cardioid and Figure-of-eight condenser elements
Switchable low-frequency roll-off
Switch selection of non-matrixed M-S mode and two internally-matrixed
left/right stereo modes

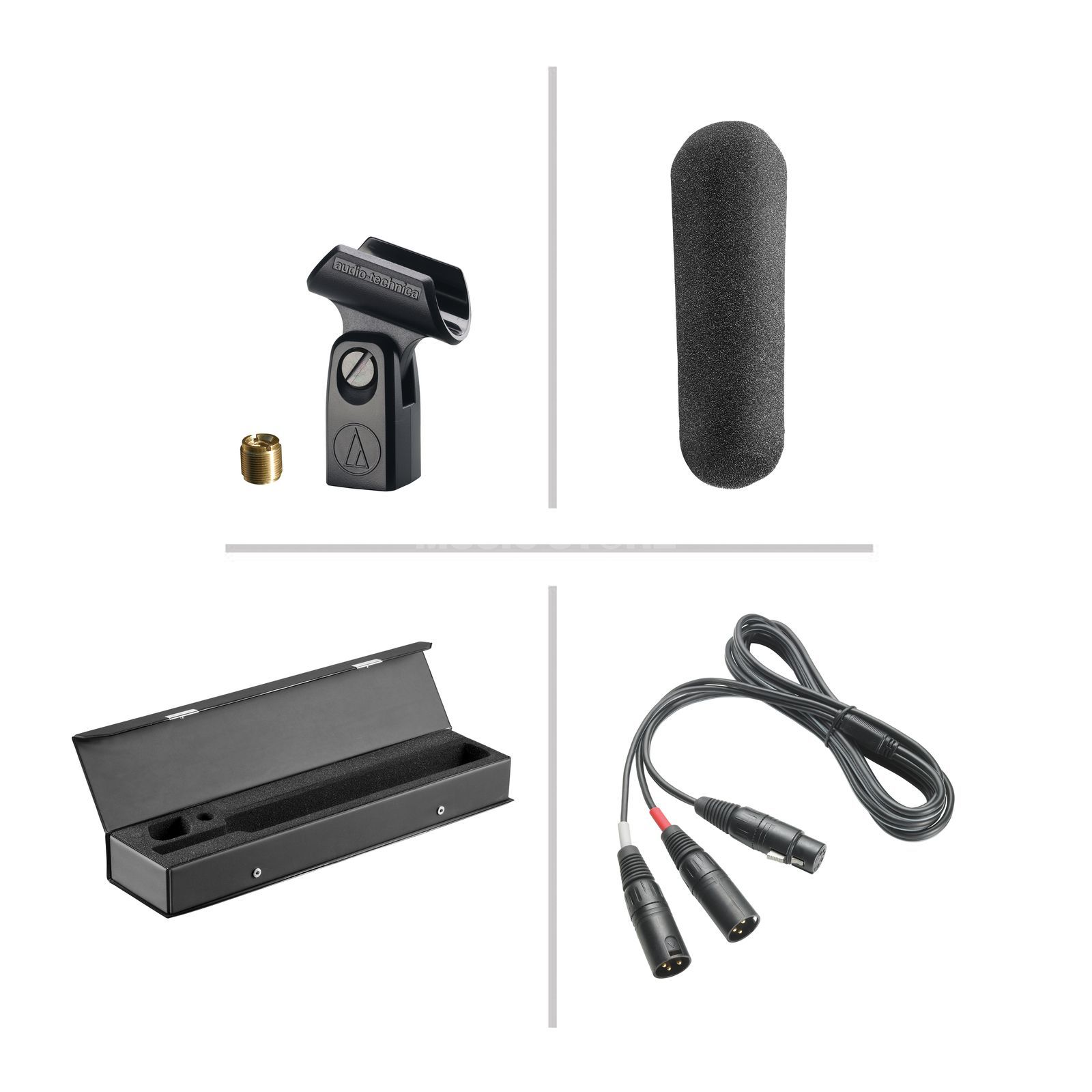

Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM
connectors)
RoHS compliant—free from all substances specified in the EU directive on
hazardous substances
Specifications
| Element | Fixed-charge back plate, permanently polarized condenser |
|---|---|
| Polar Pattern | Line-cardioid, Figure-of-eight |
| Frequency Response | 40-20,000 Hz |
| Low Frequency Roll Off | 80 Hz, 12 dB/octave |
| Open Circuit Sensitivity | Mid: -30 dB (31.6 mV) re 1V at 1 Pa;
Side: -34 dB (19.9 mV) re 1V at 1 Pa; LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa |
