Power
adaptor
for
eSMART
lithium
battery
with
fuel
gauge
–
Hirose
connectors

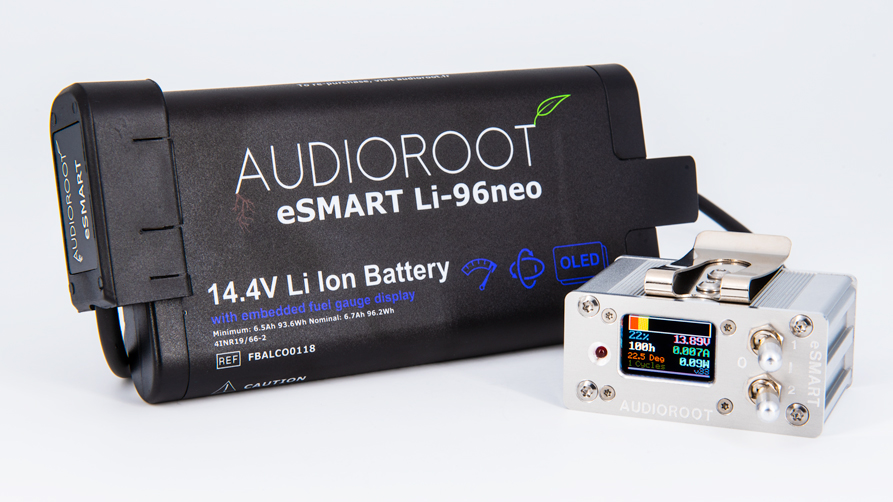

The Audioroot eSMART BG-DH MKII is an ultra-small, DC power distribution box with 4 fused outputs, 2 non fused auxiliary outputs and a colorful fuel gauge designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The BG-DH MKII has a smart DC input cable and six DC outs all on rugged Hirose locking connectors. The first 4 outputs are protected with a 2.5 amp re-settable fuse.
- Real time display of the battery’s status : remaining capacity (%), estimated running time left, battery voltage, current consumption, battery pack temperature and battery charge/discharge cycles count

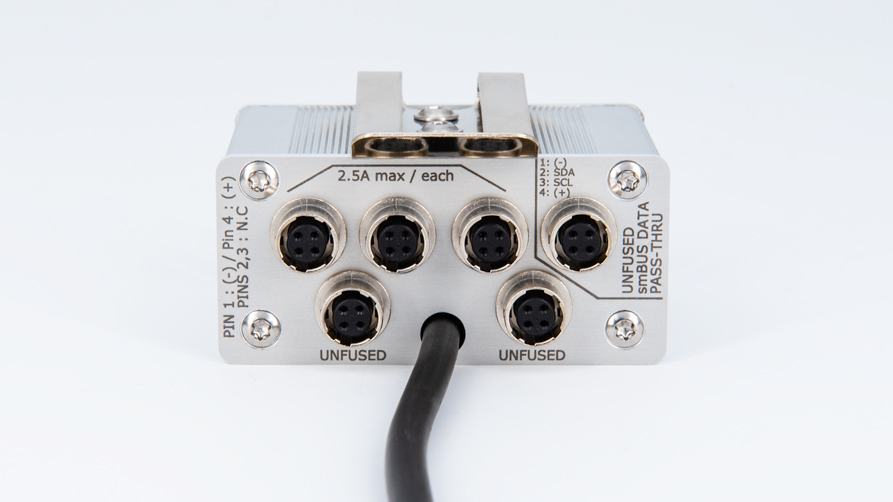

- 6 power outputs switchable (4/2) via locking switches
- Polyswitch 2.5A resetable fuses on the first 4 outputs
- A blinking LED indicates when the battery capacity falls below 10 %
- Plugs directly on all Audioroot smart batteries
- Hirose locking connectors
- Sunlight readable 96 x 64 pixels OLED color screen with 180° viewing angle
- Very low power consumption : the eSMARTG BG-DH MKII does not affect the battery’s autonomy
- Compact and lightweight : 130g / 65 x 50 x 30 mm
Power
adaptor
for
eSMART
lithium
battery
with
fuel
gauge
–
Hirose
connectors
The Audioroot eSMART BG-DH MKII is an ultra-small, DC power distribution box with 4 fused outputs, 2 non fused auxiliary outputs and a colorful fuel gauge designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The BG-DH MKII has a smart DC input cable and six DC outs all on rugged Hirose locking connectors. The first 4 outputs are protected with a 2.5 amp re-settable fuse.
- Real time display of the battery’s status : remaining capacity (%), estimated running time left, battery voltage, current consumption, battery pack temperature and battery charge/discharge cycles count
- 6 power outputs switchable (4/2) via locking switches
- Polyswitch 2.5A resetable fuses on the first 4 outputs
- A blinking LED indicates when the battery capacity falls below 10 %
- Plugs directly on all Audioroot smart batteries
- Hirose locking connectors
- Sunlight readable 96 x 64 pixels OLED color screen with 180° viewing angle
- Very low power consumption : the eSMARTG BG-DH MKII does not affect the battery’s autonomy
- Compact and lightweight : 130g / 65 x 50 x 30 mm
