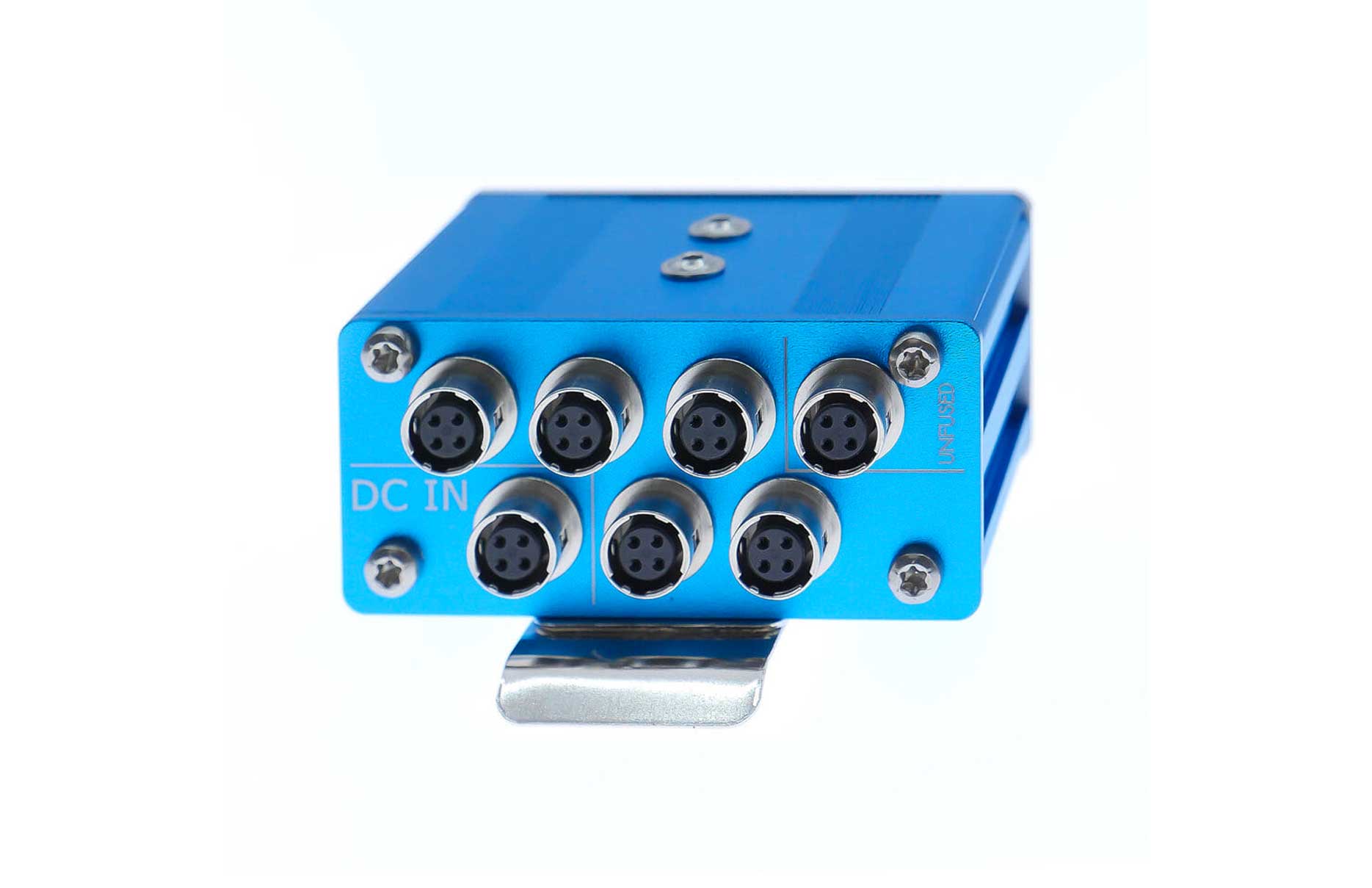

The Audioroot vmDBOX-HRS-cc is an ultra-small, DC power distribution box with 6 DC outputs and an integrated multi function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.
- Integrated white OLED display with voltmeter, ampmeter, Ahmeter, wattmeter and timer for battery or power supply monitoring
- 6 power outputs switchable with one rugged locking switch
- 5 x outputs with 2.5A polyswitch resetable fuses
- 1 x unprotected output
- 1 x belt clip mountable on top or bottom of the housing
- Compatible with any battery or power supply ranging from 5.0V to 24V DC
- Hirose locking connectors
- Very low power consumption : the vmDBOX-HRS-cc does not affect the battery’s autonomy
- Compact and lightweight : 119g / 65 x 50 x 30 mm
- Maximum recommended total current load : 7A
The vmDBOX-HRS-cc’s display shows the following information :
Left part of the display :
- elapsed time (since the power distributor was power on)
- power consumption of all the devices connected to the power distributor (in W)
- power distributor internal temperature (in degrees Celsius)
- total energy consumption in Ah (since a power source was applied to the vmDBOX-HRS-cc)
Right part of the display :
- power source voltage (in V)
- total power draw (in A)
- total energy consumption in Wh (since a power source was applied to the vmDBOX-HRS-cc)
The « SELECT/RST » allows to toggle with a short press between 2
sets of energy consumption data.
A long push resets the currently selected energy consumption data set.
