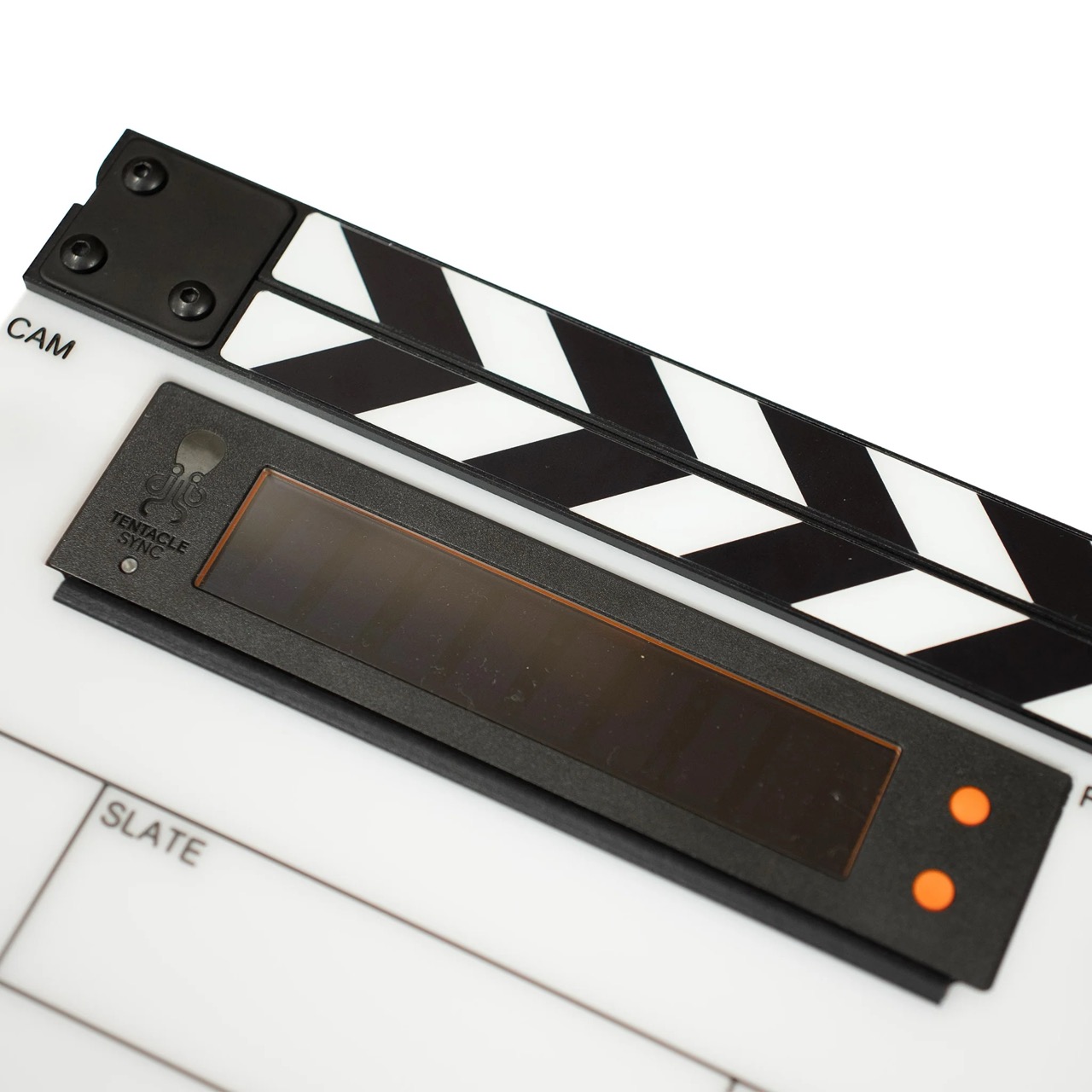

Digital Timecode Slate Kit with Tentacle Sync Timebar - EU Version
In the constantly changing realm of film and video production, achieving accurate synchronization between audio and video has become increasingly important. At its core, the Digital Timecode Slate Kit is designed to streamline the synchronization process, ensuring your audio and video are perfectly coordinated from the moment the camera starts rolling. This innovative device combines the traditional functionality of a slate board with the advanced technology of digital timecode in collaboration between Filmsticks and Tentacle Sync, making it an essential asset for any production. The result? A significant reduction in editing time and a dramatic decrease in the potential for sync errors, make it an essential tool for any production, large or small.
Core Features:

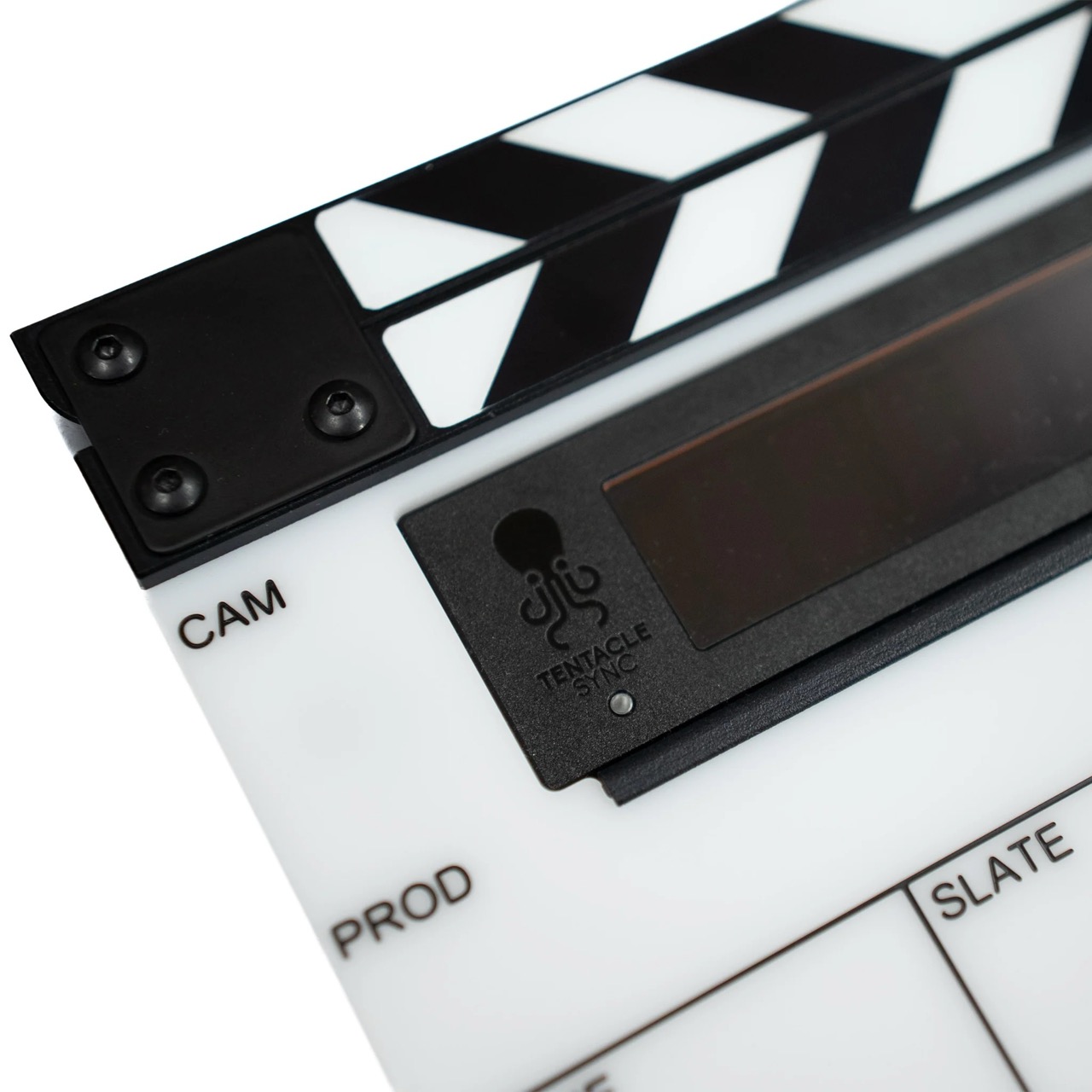

5mm-Thick Slate Board - Made from high-quality acrylic, this enhanced thickness from our traditional board is constructed to work seamlessly with the digital timecode slate and tested to withstand the rigors of both indoor and outdoor shoots. Its sturdy build ensures reliable performance in a variety of filming environments.
Specification: EU Version Layout 280mm x 190mm (11”) Acrylic Board with 5mm thickness, 235g
Timecode Clapper Sticks - The Gripsticks 11” Medium Sticks comes with white and black chevrons laminate design. However, we can also refer bespoke designs to 4130 limited, our collaborator and partner for these clapper sticks, making this a fully customisable choice of clapper stick. The sticks are made with a 5.5mm insert groove for slates. The system utilises 1.5mm Hex grub screws with nylon tipped ends for tightening the 5mm Slate, along with 2 threads on the back for fixing the Tentacle Sync Timebar Holder that makes up the Digital Timecode Slate. A further 2 threads are provided for fixing the optional Handle to the system. The Sticks has a built-in Neodymium magnet, with a shaft to activate the Tentacle Sync sensor system.
Specification: (Medium 11”) 280mm x 30mm x 43mm, 249g

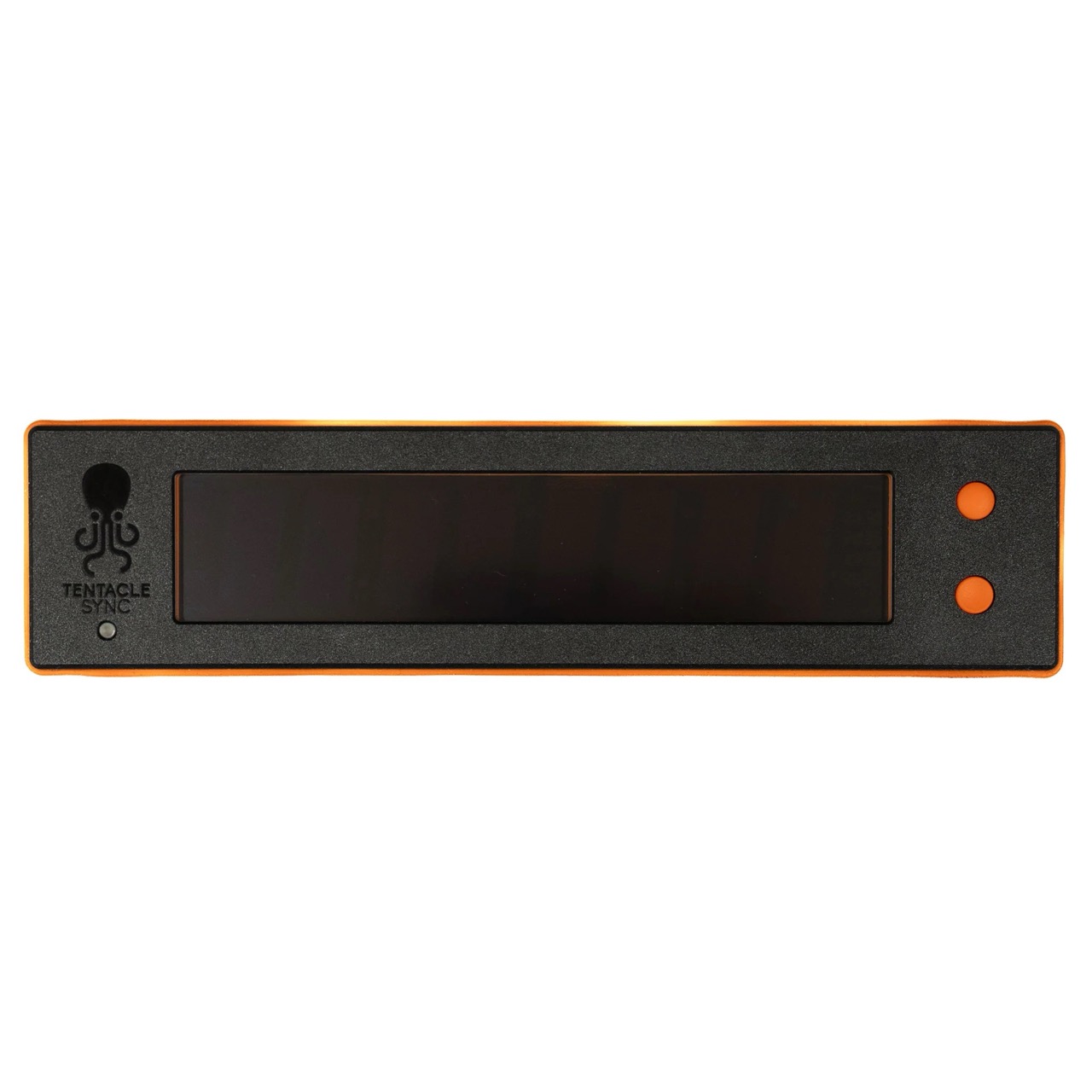

Tentacle Sync High-Contrast OLED Timebar:
The TIMEBAR is the all-rounder among timecode displays, combining
multi-functionality with a high-contrast display. Equipped with OLED
technology, the TIMEBAR features a unique alphanumeric design that ensures
excellent readability, making it suitable for use both in the studio and on
set. It serves as a reliable timecode generator or as a timecode display for
directors and the team.
The OLED display not only provides high contrast, but also ensures low energy
consumption, allowing the TIMEBAR to last throughout the entire day. To
facilitate sustainable and long-term use, both the battery and the OLED
display are easily replaceable and can be obtained from the official shop or
numerous authorized dealers.
Timebar FEATURES:
• High-contrast OLED Technology with a Wide Viewing Angle
• Compact & Lightweight
• Unique Alphanumeric Display Design
• Typical Battery Runtime 24 hours
• Control, Sync & Operate all devices via Bluetooth®
• Timecode Generator with TC In & Out
• Timer & Stopwatch Functionality
• Text Display
• Limited Two Year Warranty
• Designed and Manufactured in Germany
Included Accessories:
• 1x 3.5 mm to Straight BNC Cable
• 1x USB-A to USB-C Cable
• 1x Zipper Bag Long
• 1x Software License for Tentacle Sync Studio (macOS)

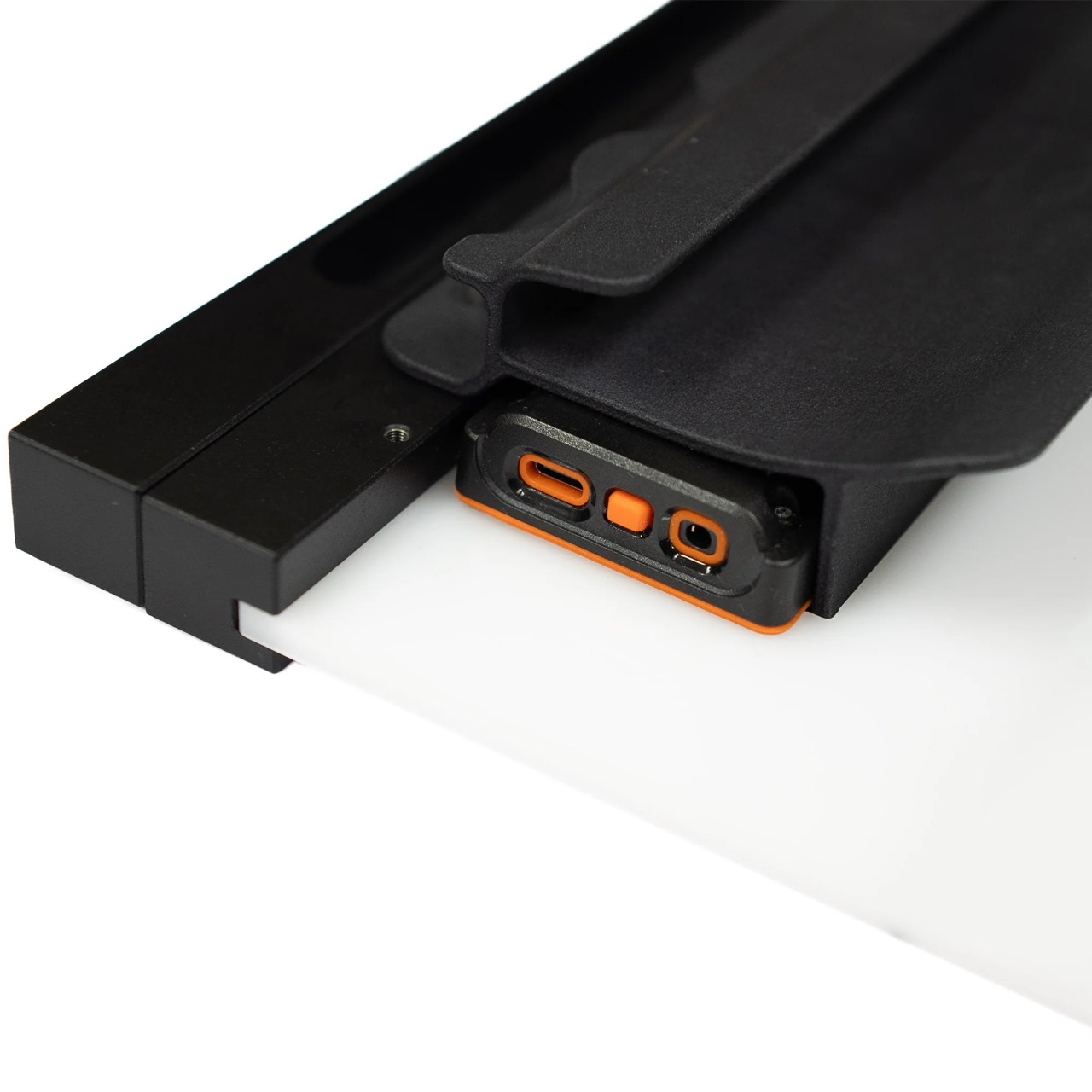

Tentacle Sync Timebar Holder - designed to hold and secure the Timebar into the slate. Multiple points for hand position when slating, utilising the upper and lower lip of the holder.
WHAT’S IN THE BOX?
• Tentacle Sync Timebar
• Gripsticks Timecode Clapper Sticks
• 5mm Slate Board
• Timebar Holder
• 1.5 Hex Key for Gripsticks
• M4 Screws
Optional: Tentacle Sync Timebar Handle
– offering additional hand positions when slating, and providing a firm grip
on the slate when on set. The provision of multiple 1/4 20 threads on
the back and underside of the handle, along with a 3/8” thread, allows for
additional mounting.
Tentacle Sync Timebar
TECHNICAL SPECIFICATIONS
Connectivity
• 3.5 mm Jack: Timecode In/Out
• USB Connection: USB-C (USB 2.0)
• USB Operating Modes: Charging, Firmware Update
Control & Sync
• Bluetooth®: 5.2 Low Energy
• Remote Control: Tentacle Setup App (iOS/Android)
• Synchronization: Via Bluetooth® (Tentacle Setup App)
• Jam-Sync via Cable
• Timecode In/Out: LTC via 3.5 mm Jack
• Drift: High Precision TCXO/Accuracy less than 1 frame drift in
24 hours(-30°C to +85°C)
• Frame Rates: SMPTE 12M / 23.98, 24, 25 (50), 29.97 (59.94),
29.97DF, 30
Power
• Power Source: Built-in rechargeable Lithium Polymer Battery
• Battery Capacity: 2200 mAh
• Battery Operation Time: 6 hours (highest brightness) to 80
hours (lowest brightness)
• Battery Charging Time: Standard Charge: 4-5 hours, Fast Charge:
2 hours
Hardware
• Weight: 222 g / 7.83 oz
• Dimensions: 211 x 54 x 19 mm
