Fostex 6301NE

Active personal monitor; 4 inch, electrically balanced

€375.00

€349.00

7% discount

Prices excl. VAT plus shipping costs

Ordered before 15:00, shipped the same day, provided products are in stock.
Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
Tax free for customers outside the Netherlands (with a valid VAT number).
Do you have a question about this product? Chat with us and we'll tell you all about it!

Product number: K029506

The Fostex 6301N series retains the robust die-cast construction of the current 6301 series, with new features including a 20W D-class amplifier, multi-voltage power handling, a detachable power cable and an energy saving Stand-by mode. The compact dimensions are almost identical to the current 6301 model with the only difference being a decrease depth, due to it not featuring a heat sink.

This means that this little powerhouse can fit in even smaller spaces!. The new models consist of the 6301NB (unbalanced 1/4" phone input), the 6301NE (with electrically-balanced XLR input), the 6301NX (with transformer-balanced XLR inputs) and the 6301ND (with digital AES/EBU input). At the same time, the mounting adapter, 9610, has been updated in the form of the new EB-6301 which allows rotation of the 6301N even when the cable is inserted.

20W D-class power amplifier for higher output level and less power consumption with no heat sink
Dedicated 4-inch full range driver for clear audio reproduction
Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
Flat panel design to avoid inadvertent power-off or level change
Auto Stand-by mode (compliant to ErP directive) for energy saving
Detachable IEC type power inlet with multi-voltage power handling
Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments

Specifications

Enclosure type: closed
Unit: 4" full range
Frequency response: 70 Hz - 15k Hz
Sound Pressure Level: 85dB / W (1m)
Maximum SPL: 98dB

AMPLIFIER SECTION

Inputs

All Models: Connector: 1/4" TS Phone (unbalanced)
Input Impedance: 10k ohm or more
6301NX Connector: XLR-3-31 (transformer balanced)
Input Impedance: 10k ohm or more

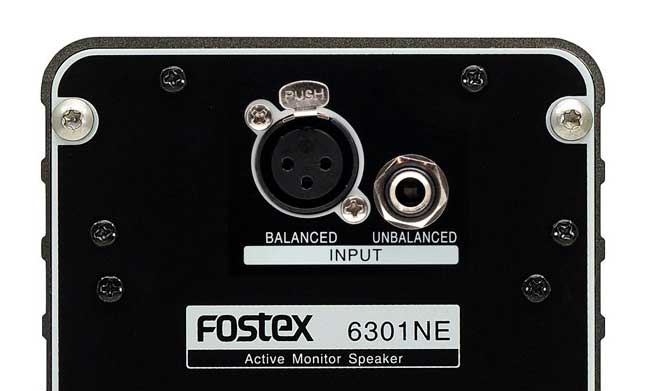

6301NE Connector: XLR-3-31 (electrically balanced)
Input Impedance: 10k ohm or more
6301ND Connector: XLR-3-31 (IEC 60958 AES/EBU)
Input Impedance: 110 ohm or more

Output (Thru)

6301ND Connector: XLR-3-32 (IEC 60958 AES/EBU)

Rated utput: 20W
Distortion (T.H.D.): 0.05% (1kHz / 1W output)
Residual Noise: -70dBV or less (NB/NE/NX)
-65dBV or less (ND)
Input Sensitivity: 1/4" TS phone: -14dBV (0.2Vr.m.s.)
XLR: +4dBu (1.2Vr.m.s.)
XLR(Digital): -12dBFS
Auto Stand-by: active after approx. 25 min. of continuous input lower than the threshold level

GENERAL

Dimensions: 120 (W) x 189 (H) x 120 (D) mm
Weight: NB/NE/ND: 2.2kgs
NX 2.3kgs
Power Requirement: AC 100 - 240V (50/60Hz)
Power Consumption: 10W (less than 0.5W in stand-by mode)

Product information

20W D-class power amplifier for higher output level and less power consumption with no heat sink
Dedicated 4-inch full range driver for clear audio reproduction
Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
Flat panel design to avoid inadvertent power-off or level change
Auto Stand-by mode (compliant to ErP directive) for energy saving
Detachable IEC type power inlet with multi-voltage power handling
Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments
