Q5X AquaMic - QT-5100A
Q5X AquaMic - QT-5100A

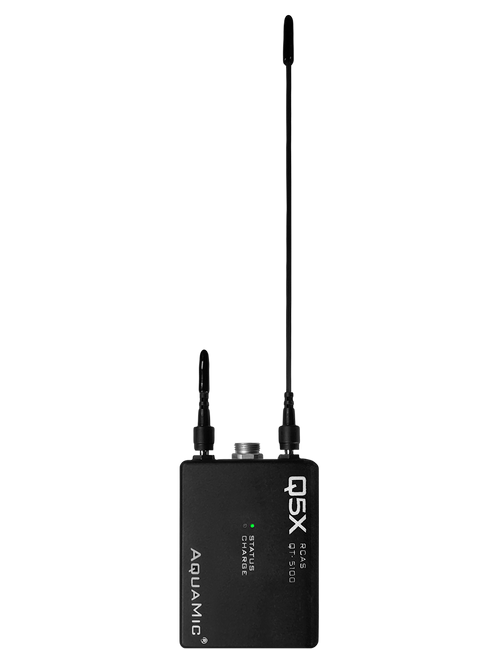

Bodypack transmitter, in an aluminum waterproof, submersible case. Featuring an internal 8hr lithium polymer rechargeable battery and waterproof 6-pin Lemo connector for a removable lavalier microphone. Wisycom compatible. Analog, 8 hrs.
€3,095.00
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K041425
| Specification | Analog AquaMic | ||
|---|---|---|---|
| Dimensions | 65 x 46 x 19 mm | ||
| Weight (incl. battery) | 100.6 g | ||
| Housing Material | Machined Aluminum | ||
| RF Output Power | 10mW–100mW | ||
| UHF Frequency Range | 525-600Mhz | ||
| Tunable Bandwidth | 25 kHz steps (varies by block) | ||
| Modulation Type | FM | ||
| Frequency Response | 50 Hz to 17,000 Hz | ||
| Notes on Frequency Response | Dependent on mic element | ||
| Audio Connector | 6-pin Waterproof Lemo | ||
| Nominal Deviation | ±40 kHz | ||
| Peak Deviation | ±54 kHz | ||
| Pre-emphasis | 50 µs | ||
| Compander | Q5X DCS-QT | ||
| Signal-to-Noise | 105 dB (A) rms | ||
| Frequency Stability | ±0.001% | ||
| Spurious Emissions | < -60 dBc | ||
| THD (at nominal deviation) | 0.30% | ||
| Antenna | 1/4 wave UHF and 2.4 GHz | ||
| Battery Type | Internal Lithium Polymer | ||
| Operating Time | 8 hrs @ 50mW | ||
| Operating Temperatures | -20⁰C to 50⁰C | ||
| Storage Temperatures | -20⁰C to 45⁰C | ||
