Riedel Bolero NSA-002A
Riedel
Riedel Bolero NSA-002A
i/o interface for Bolero systems, 3x GPIO, 6x 4Wire interface
€3,870.00
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K030807

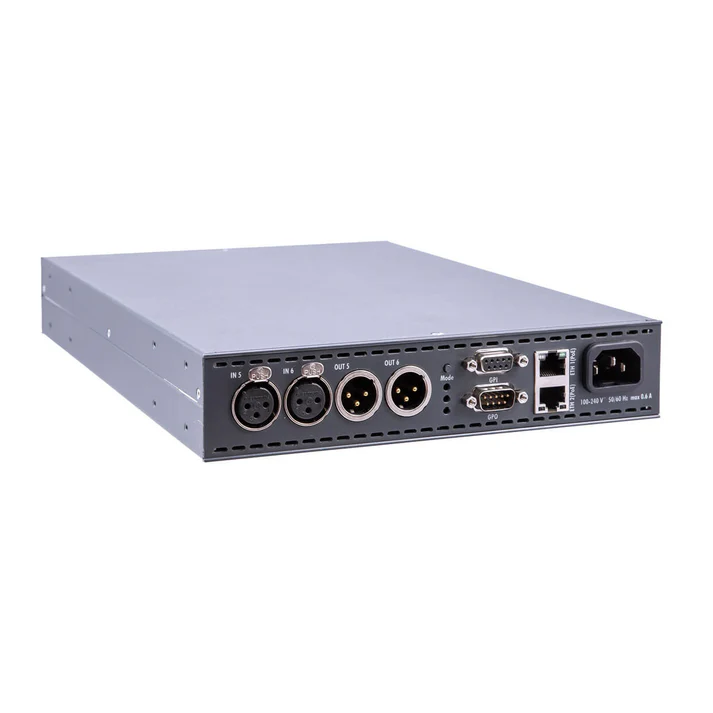

Riedel's NSA-002A Network Stream Adapter facilitates the two-way conversion of signals between analog and AES67 formats. This plug-and-play device offers versatile mounting options and bridges a Bolero wireless intercom system and any analog 4-wire connection. It can be powered internally or through PoE, and features easy-to-read LED indicators for system status.
- 3 x GPO and 3 x PGI relays
- AES67 and dual ethernet ports
- Internal and PoE power
Product Features
- 6 analogue audio channels- 3 x GPO and 3 x PGI relays
- AES67 and dual ethernet ports
- Internal and PoE power
**Analogue Audio Line In**
- Nom Input Level: +6 dBu
- Max Input Level: +24 dBu
- Input Impedance: 10 kΩ
- Frequency Response: 20 Hz .. 20 kHz
- Signal to Noise Ratio: >100 dB
- Crosstalk: <-110 dB
- Total Harmonic Distortion: typ. 0.008 %
- Resolution: 24 bit
**GPI In**
- Isolation Voltage: 100 VDC
- Maximum Voltage: 30 VDC
- Input Current: 5 mA @ 5 VDC
- Switching Threshold: off: <0.8 VDC, on: >2.0 VDC
**Analogue Audio Line Out**
- Nom Output Level: +6 dBu
- Max Output Level: +24 dBu
- Output Impedance: <200 Ω
- Min Load Impedance: 2 kΩ
- Frequency Response: 20 Hz .. 20 kHz
- Signal to Noise Ratio: >100 dB
- Crosstalk: <-110 dB
- Total Harmonic Distortion: typ. 0.008 %
- Resolution: 24 bit
**GPI Out**
- Isolation Voltage: 100 VDC
- Maximum Voltage: 30 VDC
- Maximum Current: 100 mA
- Environmental Temperature: 0°C ... +50°C
- Humidity: 20 % ... 90 % rel. hum. (non-condensing)
- Max Altitude: 3000 m AMSL
- Dimensions: 218 mm × 45 mm × 276 mm (242 mm × 65 mm × 293 mm with bumpers)
- Weight: 1770 g (2250 g with bumpers)
- Nom Input Level: +6 dBu
- Max Input Level: +24 dBu
- Input Impedance: 10 kΩ
- Frequency Response: 20 Hz .. 20 kHz
- Signal to Noise Ratio: >100 dB
- Crosstalk: <-110 dB
- Total Harmonic Distortion: typ. 0.008 %
- Resolution: 24 bit
**GPI In**
- Isolation Voltage: 100 VDC
- Maximum Voltage: 30 VDC
- Input Current: 5 mA @ 5 VDC
- Switching Threshold: off: <0.8 VDC, on: >2.0 VDC
**Analogue Audio Line Out**
- Nom Output Level: +6 dBu
- Max Output Level: +24 dBu
- Output Impedance: <200 Ω
- Min Load Impedance: 2 kΩ
- Frequency Response: 20 Hz .. 20 kHz
- Signal to Noise Ratio: >100 dB
- Crosstalk: <-110 dB
- Total Harmonic Distortion: typ. 0.008 %
- Resolution: 24 bit
**GPI Out**
- Isolation Voltage: 100 VDC
- Maximum Voltage: 30 VDC
- Maximum Current: 100 mA
- Environmental Temperature: 0°C ... +50°C
- Humidity: 20 % ... 90 % rel. hum. (non-condensing)
- Max Altitude: 3000 m AMSL
- Dimensions: 218 mm × 45 mm × 276 mm (242 mm × 65 mm × 293 mm with bumpers)
- Weight: 1770 g (2250 g with bumpers)
