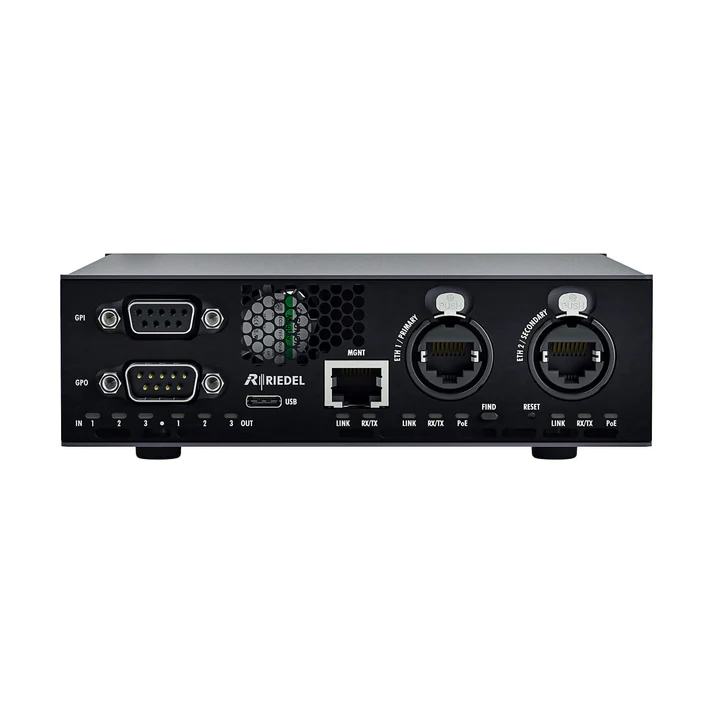

Riedel Bolero NSA-006A
Riedel
Riedel Bolero NSA-006A
Workplace i/o (Line, AES3) - Compact all-in-one interface solution designed to meet all audio needs of a media workplace, including Mic-Pre, HP-Out, and stereo speakers.
€1,990.00
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K041317
Product Features
Compact all-in-one interface solution designed to meet all audio needs of a media workplace, including Mic-Pre, HP-Out, and stereo speakers.
- 1 x Universal Input (Mic/Line & AES3)
- 1 x Headphones Output w/ volume rotary & LED-Bar
- 2 x Universal Outputs, (Line & AES3)
- 1 x Stereo USB-Audio In/Out, 3 x GPIOs
Technical Specifications
- SMPTE 2022-7 Redundancy: Separated network interfaces for SMPTE 2022-7 stream redundancy
- Flexible Device Management Options: In-band and out-of-band management
- IP Centric: SMPTE 2110-30 & 31 , NMOS IS-04, IS-05, IS-07 & IS-08, static IP and DHCP support
- Flexible Routing: Manual routing or via NMOS IS-08, Up to 16 channels / 16 streams, internal port-to-port routing
- Network Daisy-Chaining: Single-ended or ring topology (RSTP supporting network switches required)
- Identification/Localisation: Identify and localise the device or specific ports by blinking LEDs
- Administration Login: Definable restrictions for operational users
- Power Supply Redundancy: Dual PoE on media ports
- Fanless Operation: In controlled environments (< 30°C) , Up to 50°C in extreme situations with fan support
- Versatile mounting options: Detachable rubber feet, stackable bumper jacket, under desk and wall mount, 19” Rack mount via rack shelf, VESA (100 mm/M4) mounting, Kensington Lock
