SWIT PB-H290S
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

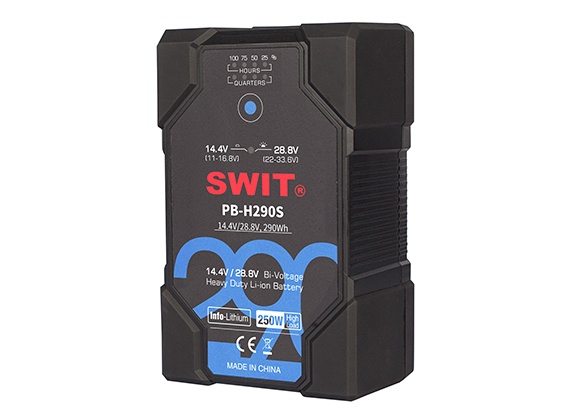

290Wh Capacity, 250W High Load
PB-H290S consists of 24pcs high class 18650 battery cells, and reaches 290Wh high capacity. PB-H290S supports Max 250W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously. The high load battery will have longer life time than normal battery if always under full load power.
6A Super Fast Charging
Using SWIT super fast charger
PB-H290S supports 6A fast charging by SWIT S-3812S or PC-P460S super fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 3 hours 50 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together. Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A; Under 28.8V (22-33.6V) output mode, D-tap output constant 16V and Max load 50W/3A;

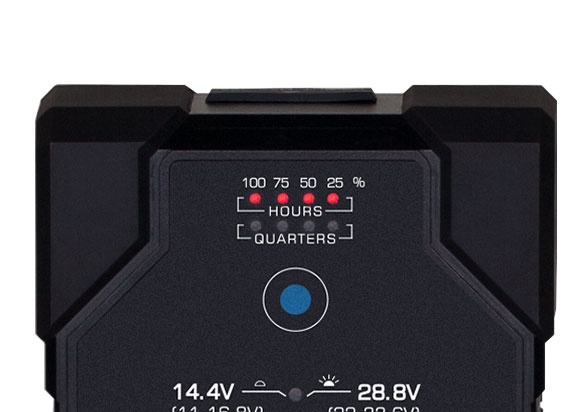

Digital Power Indicator
8-LED remaining time read
When battery is discharging: Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery. When battery is charging: Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%. When battery is free: Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
Strong 1.5m Drop-off Proof
Dual housing + Rubber cover
PB-H290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
290Wh Capacity, 250W High Load
PB-H290S consists of 24pcs high class 18650 battery cells, and reaches 290Wh high capacity. PB-H290S supports Max 250W constant power output, can drive ALEXA LF (160W) more on-camera monitors or wireless simultaneously. The high load battery will have longer life time than normal battery if always under full load power.
6A Super Fast Charging
Using SWIT super fast charger
PB-H290S supports 6A fast charging by SWIT S-3812S or PC-P460S super fast charger, to save up to 60% charging time, can be charged from 0 to 80% after 2 and half hours, and fully charged within 3 hours 50 minutes.
D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipment together. Under 14.4V (11-16.8V) output mode, D-tap output 11-16.8V and Max load 120W/10A; Under 28.8V (22-33.6V) output mode, D-tap output constant 16V and Max load 50W/3A;
Digital Power Indicator
8-LED remaining time read
When battery is discharging: Press "Power Check" button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery. When battery is charging: Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%. When battery is free: Press "Power Check" button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.
Strong 1.5m Drop-off Proof
Dual housing + Rubber cover
PB-H290S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
