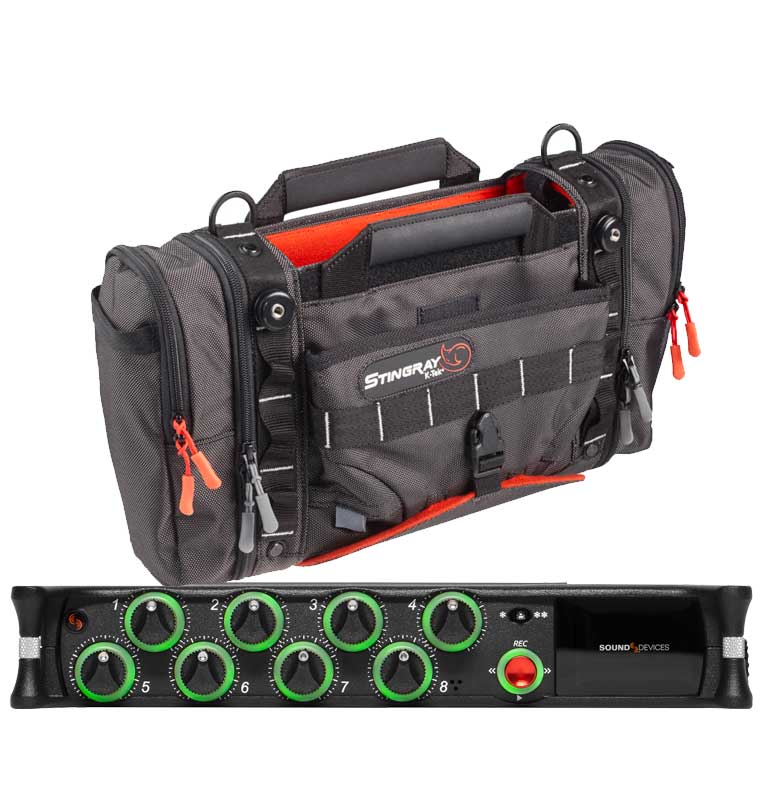

Sound Devices MixPre-10 II Bundle 1

If you record field audio, sound effects, audio for film, live music or are just starting your audio journey, the MixPre-10 II is for you! With eight crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters or audio for film with superior quality - all the way up to a 32-bit float bit depth and a 192 kHz sample rate. This newest generation of Sound Devices' award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.

Your MixPre-10 II is highly customisable to your needs. Record internally to a compatible SD card on set or stream your podcast over USB to your computer at home. Power with your computer, wall power or record in the middle of nowhere with AA or Sony L-mount batteries. Adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion and phantom power to your liking. Stay in sync with your camera using the internal timecode generator or feed timecode in via HDMI, aux in or BNC.

Your MixPre-10 II is rugged, lightweight and small, so you can throw it in a bag or mount it to a tripod or camera - or get situated on set with our Wingman App and one of our four supported USB control surfaces. With the superior sound and build quality that you can expect from the industry leader in production audio recording, your MixPre-10 II can capture audio for any application.

Are you a songwriter or musician? Buy the Musician Plugin to easily create a song using your MixPre-10 II as a standalone recorder or USB interface. Use onboard features like overdub, bounce, reverb and tracking to a metronome. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing. Capturing your song ideas has never been easier! While in Music Mode, the MixPre-10 II is limited to eight simultaneous live inputs. Using multiple microphones with your MixPre-10 II? Enable the MixAssist Plugin to reduce unwanted microphone and room noise while recording.

Download the free Ambisonics Plugin on the Sound Devices website to record in 360° audio and monitor binaurally with an ambisonic microphone like the Sennheiser AMBEO and your MixPre-10 II.

FEATURES:

• eight ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field on set or with a computer
• create a mix using the built-in 10 x 4 portable mixer
• record up to 12 tracks to an SD card and backup to a USB thumb drive
• 12-in, 4-out USB audio interface streams to your computer via USB-C
• choose bit depths from 16 to 32-bit float, sampling rates from 44.1 kHz to 192 kHz
• internal LTC timecode generator, timecode in/out via BNC or aux in/stereo out
• timecode and record triggering via HDMI
• USB-A for control surfaces, keyboards and auto-copy to USB drive
• in-unit ISO mixing, gain, pan, low-cut, phase inversion and phantom power
• sunlight-readable color touch screen and LED metering
• lightweight, durable, and small: perfect for bag use, mobile recording or studio
• powerful 300 mW+300 mW headphone amp allows clear and accurate reference
• customise with plugins from the Sound Devices plugin store
• output level of +18 dBu on TA3
• includes a MX-8AA Battery Sled (batteries not included), XL-WPH3 AC Power Supply and USB-C to USB-C cable

AUDIO INPUTS:

• frequency response: 10Hz to 80kHz +/0.5dB re 1kHz @ 192kHz sample rate
• THD + Noise: 0.005% max (@1kHz, 22-22kHz BW, gain=20dB, -10dBu in)
• ADC 32 bit precision: 142dB dynamic range min (A-weighted, gain=10dB, fader=0dB)
• equivalent input noise: -130dBV (-128dBu) max (A-weighting, gain=76dB, 150 Ohm source impedance)
• mic input XLR active-balanced: 4k input
• line input XLR active-balanced: 4k input
• aux/mic in: 3.5mm TRS, 2-channel unbalanced, 100k input
• line input 1/4-inch TRS active-balanced, 4k input
• USB audio input: 4 channels
• all inputs fully RF-filtered and overload protected
• mic input gain: +6dB to +76dB
• line input gain: -20dB to +30dB
• fader gain: -inf to +20dB
• headphone gain: -inf to +20dB
• total gain, mic-to-recording (max): +96dB
• aux in (mic): gain = +10dB to +40dB
• aux in (line): gain = -10dB to +20dB
• total aux gain including fader (mic-to-recording): +60dB
• maximum input level mic XLR: +14dBu (limiters on or off)
• maximum input level line XLR/1/4-inch: +28dBu (limiters on or off)
• maximum input level aux in (mic): -10dBu
• maximum input level aux in (line): +10dBu
• low cut filters 40Hz to 160Hz (adjustable), 18 dB/oct. first stage analog, subsequent stages digital
• microphone powering mic XLRs: 48V via 6.8k resistors, 10mA each
• microphone powering mic 3.5mm: 3V @ 3k source
• limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital
• adjustable threshold, ratio and release

AUDIO OUTPUTS:

• DAC feeding stereo out, headphone out 32 bit precision: 115dB dynamic range (A-weighted)
• L/R Out TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level
• X1/X2 out 3.5mm TRS stereo unbalanced, 500 Ohm output impedance, +7.8dBu max output level
• headphones out 3.5mm TRS stereo unbalanced, 300mW + 300mW, for use with any impedance headphones

USB:

• USB audio interface (USB-C): 12-in/4-out, 44.1 to 96 kHz, 16/24/32-bit integer, 32-bit float, class-compliant USB 2.0 high speed or ASIO driver (supplied via download)
• USB mass storage (USB-C): USB 2.0 high speed
• USB keyboard (USB-A): text entry and control
• USB thumbdrive (USB-A): manual or auto-copy to drive
• USB midi control surface (USB-A)

RECORDING:

• maximum record tracks 12 tracks: stereo mix + 10 ISOs
• sampling frequency: 44.1, 47.952, 48, 48.048, 96, 192 kHz
• bit depth: 16, 24, 32 float
• recording storage type: SD, SDXC, SDHC Card (USB thumbdrive, copy only), max storage size: 512 GB (SDXC)
• recording storage card format: exFAT
• recording file type: polyphonic WAV

TIMECODE:

• timecode modes free run, time of day (file stamped w/current ToD), rec run, ext LTC (file stamped w/incoming LTC on BNC or aux 3.5mm), camera TC (file stamped w/incoming TC from cameras that output TC)
• timecode frame rates auto-detects (fps): 23.98 (same as 23.976), 24, 25, 29.97DF, 29.97ND, 30, 30DF
• sync source internal, word clock, ext LTC
• BNC in (TC in) switchable between timecode (default) or word clock input, timecode: 20k Ohm impedance, 0.3 V-3.0 V p-p (-17 dBu -/+3 dBu), word clock: 10k Ohm impedance, 1.5V p-p
• BNC Out (TC out) switchable between timecode (default) or word clock output, timecode: 1k Ohm impedance, 3.0V p-p (+12 dBu), word clock: 75 Ohm impedance, 5V p-p
• TC Reader via HDMI
• sample/timecode accuracy: 0.2 ppm (0.5 frames per 24 hours)

REMOTE CONTROL:

• Bluetooth LE: wireless control using Wingman app
• HDMI (micro): auto-record start/stop trigger from cameras that output record flag over HDMI
• timecode: auto-record start/stop trigger via aux in timecode

TOUCH SCREEN:

• 320x256, 1.6-inch, color, sunlight-viewable IPS LCD

POWER:

• AA batteries: 8x AA sled (included), NiMH recommended
• L-Mount: optional sled for 2x (hot-swappable) Li-ion batteries
• AC Adapter: XL-WPH3 (included): universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord, 100-240, 50/60Hz

ENVIRONMENTAL:

• operating: -20°C to 60°C, 0 to 90% relative humidity (non-condensing)
• storage: -40°C to 85°C

DIMENSIONS:

• measures: 36 mm x 206 mm x 175 mm (H x W x D)
• weight: 0.91 kg (unpackaged, without batteries)
