Sound Devices XL-Powerstation-8M
The PowerStation-8M provides easy battery charging, file transfer, and timecode jamming of up to eight A20-Minis at a time. Powered via DC (TA4) or USB-C (USB-PD).
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K035927
The PowerStation-8M provides easy battery charging, file transfer and timecode jamming of up to eight A20-Minis at a time. Powered via DC (TA4) or USB-C (PD).
INCLUDED ACCESSORIES:
- power supply
- 2x USB-C to USB-C Cables, USB 3.0

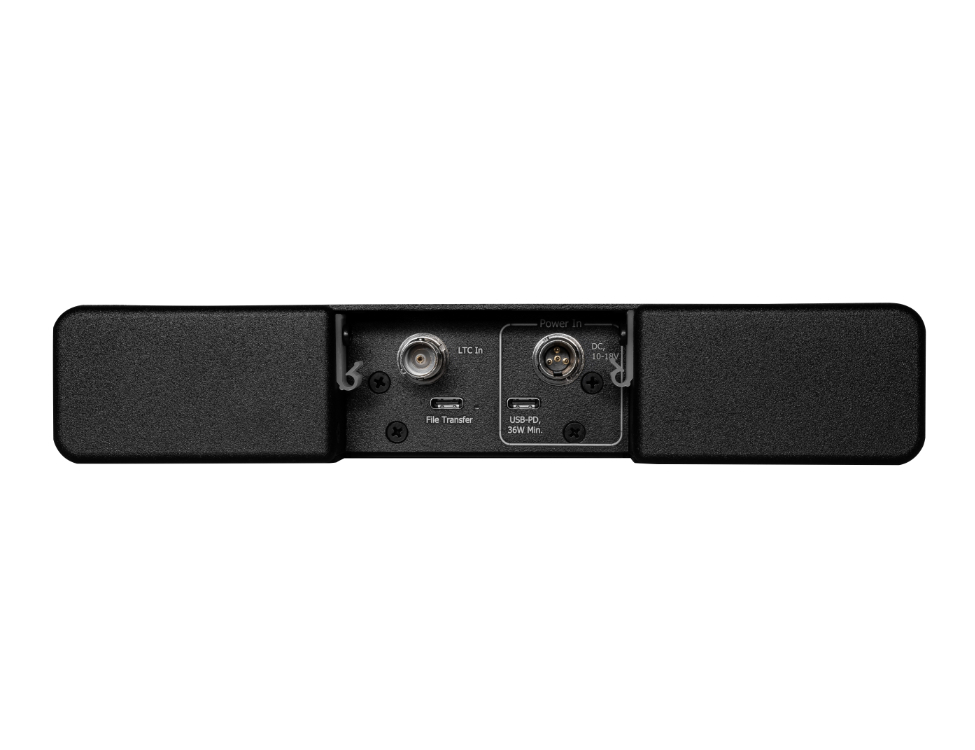

POWER:
- USB-C: PD (Power Delivery), 36 W or higher
- TA4: 10-18 VDC, 36 W or higher (pin-4 hot, pin-1 ground, pin-2 and pin-3 data for smart batteries, leave pins-2 and pin-3 disconnected if not using smart batteries.
- LTC INPUT: input impedance: 5k Ohm
- signal level: 0.3-5 Vp-p
USB-C:
- USB 3.0 SuperSpeed, internal hub
DIMENSIONS (H x W x D in mm):
- 40 x 220 x 136 (without feet)
WEIGHT:
- 670 g
Product information
The PowerStation-8M provides easy battery charging, file transfer and timecode jamming of up to eight A20-Minis at a time. Powered via DC (TA4) or USB-C (PD).
INCLUDED ACCESSORIES:
- power supply
- 2x USB-C to USB-C Cables, USB 3.0
POWER:
- USB-C: PD (Power Delivery), 36 W or higher
- TA4: 10-18 VDC, 36 W or higher (pin-4 hot, pin-1 ground, pin-2 and pin-3 data for smart batteries, leave pins-2 and pin-3 disconnected if not using smart batteries.
- LTC INPUT: input impedance: 5k Ohm
- signal level: 0.3-5 Vp-p
USB-C:
- USB 3.0 SuperSpeed, internal hub
DIMENSIONS (H x W x D in mm):
- 40 x 220 x 136 (without feet)
WEIGHT:
- 670 g
