Swit S-3812S
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Dual-channel Fast Charger
Max charging current: 6A
S-3812S can charge 2 V-mount batteries simultaneously at Max 6A fast charging
current, to SWIT ≥160Wh capacity batteries. The charging speed is quite faster
than normal chargers.
And for other batteries, the charging current is limited to 3A.
AC-DC Adapting Output

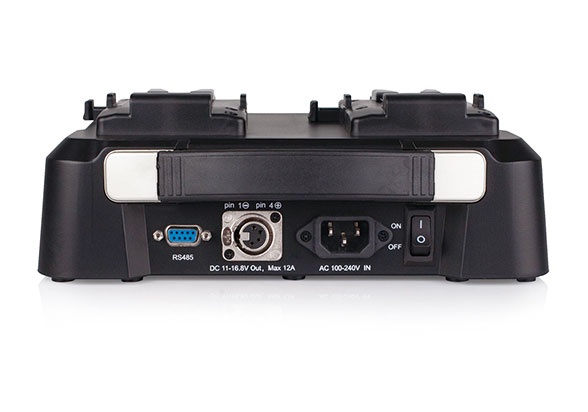

S-3812S supports 1-ch AC-DC adapting output via 4-pin XLR port. By S-7102
(4-pin XLR female to male) cable, it can supply 16.8V DC power to the other
equipments, Max load 200W/12A.
When adapting load is less than 100W, S-3812S can still charge battery
simultaneously. (2 batteries sequential) Remark: S-7102 cable is optional
purchased.
Battery-DC Adapting Output
You can also mount batteries onto S-3812S, and output DC power via 4-pin XLR
port. By S-7102 (4-pin XLR female to male) cable, it can supply 16.8V DC power
to the other equipments, Max load 200W/12A.
Remark: S-7102 cable is optional purchased.
LCD Charging Info Display
S-3812S has an LCD screen to display the real time charging/adapting
information, includes:
- Battery Charging/Discharging status
- Real time capacity and percentage
- Real time Voltage/Current
- Remaining time to fully charged
- Remaining time to fully discharged
- Battery cycle times
- Adapting output current and power
Remark: The battery info display only available with digital Li-ion batteries: PB-H, PB-R, PB-S, PB-M series. For other non-digital batteries, the charger will only display real time voltage and current.
3-color LED Indicators
S-3812S has the 3-color LED indicators for both 2 channels:
- Red light slowly flashes: The battery is charging
- Red light fast flashes: The battery is about to fully charged
- Green light constant: The battery is fully charged
- Green light flashes: The battery is adapting output
- Orange light flashes: Battery or Charger abnormal alert
