Swit S-4600

Heavy Duty 3G-SDI to HDMI converter

€259.00

Prices excl. VAT plus shipping costs

Ordered before 15:00, shipped the same day, provided products are in stock.
Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
Tax free for customers outside the Netherlands (with a valid VAT number).
Do you have a question about this product? Chat with us and we'll tell you all about it!

Product number: K026567

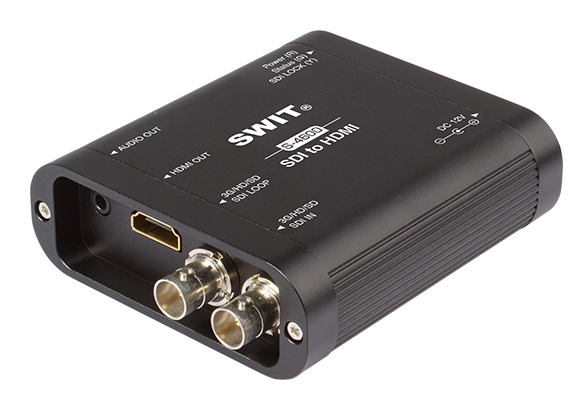

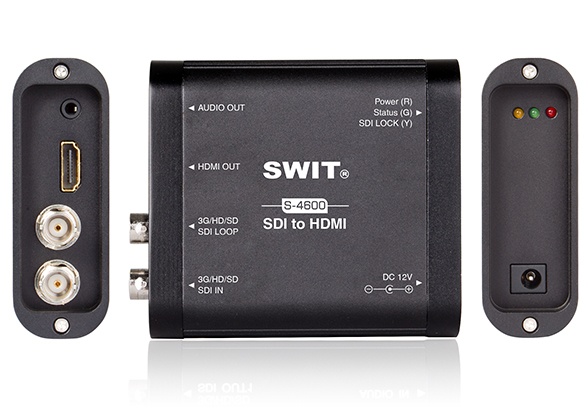

The S-4600 Converter from SWIT is a portable 3G-SDI to HDMI converter. It converts the 3G-SDI signal, with its embedded audio, to HDMI output. The S-4600 supports 3G-SDI loop through output and SDI embedded audio via a 3.5mm analog audio output. The BNC connectors are protected by the S-4600's heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply.

FEATURES

Portable 3G/HD/SD-SDI to HDMI converter
Embed SDI audio to HDMI output
One 3G-SDI input, one HDMI output, and one 3G-SDI loop through output
One analog audio output via 3.5mm socket
Power/input/output status indicators
Heavy-duty housing
Bottom screw threads for convenient installation

Specifications

Input
BNC ×1	3G/HD/SD-SDI input
Output
BNC ×1	3G/HD/SD-SDI loop output
HDMI ×1	Converted HDMI output
3.5mm ×1	SDI audio output
Video Format
SDI	SMPTE-425M	1080p (60 / 59.94 / 50)
	SMPTE-274M	1080i (60 / 59.94 / 50)
	SMPTE-274M	1080p (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-RP211	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	SMPTE-296M	720p (60 / 59.94 / 50)
	SMPTE-125M	480i (59.94)
	ITU-R BT.656	576i (50)
HDMI		1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i / 576i
Audio	48KHz Sync
General
Power	≤3W
Working Voltage	DC 6-18V
Working Environment	Temperature: 0°C-+70°C, Humidity:10%-90%
Dimensions	98×84×29 mm
Net weight	200g
