Swit S-4601
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

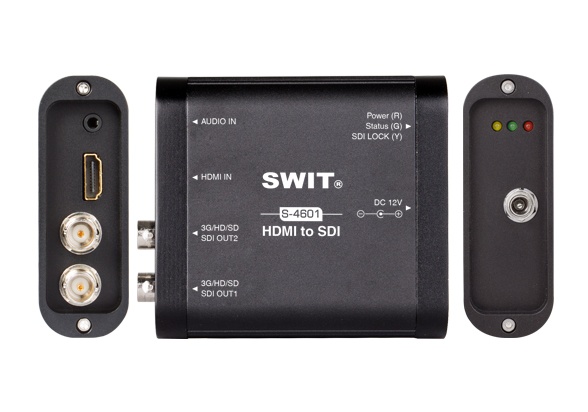

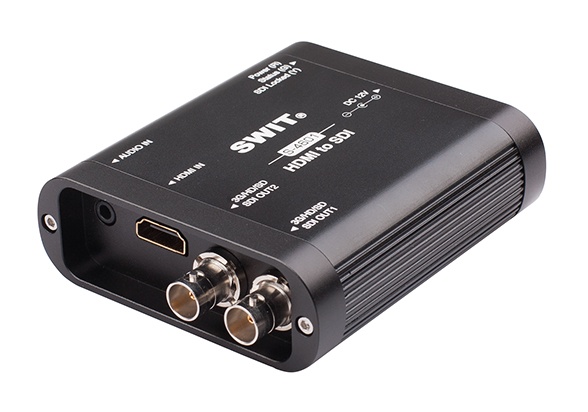

The S-4601 Converter from SWIT is an HDMI to 3G/HD/SD-SDI converter. It supports HDMI audio embedded into SDI output and analog audio (3.5mm socket) input, embedded into SDI output. Protecting the BNC connectors, the S-4601 is housed in a heavy-duty housing. It features various screw threads at the bottom for convenient installation. The unit ships with a power supply.
Note: Does not support HDCP.
FEATURES
- Portable HDMI to 3G/HD/SD-SDI converter
- One HDMI input and two SDI outputs
- One analog audio input via 3.5mm earphone socket
- Embed HDMI audio to SDI output
- Embed analog audio (3.5mm) to SDI output
- Power/input/output status indicator
- Heavy-duty housing
- Bottom screw threads for convinient installation
SPECIFICATIONS
|
Input |
||
HDMI ×1 |
HDMI input |
|
3.5mm×1 |
Analog audio input |
|
|
Output |
||
BNC ×2 |
Converted 3G/HD/SD-SDI output |
|
|
Video Format |
||
SDI |
SMPTE-425M |
1080p (60 / 59.94 / 50) |
SMPTE-274M |
1080i (60 / 59.94 / 50) |
|
1080p (30 / 29.97 / 25 / 24 / 23.98) |
||
SMPTE-RP211 |
1080psf (30 / 29.97 / 25 / 24 / 23.98) |
|
SMPTE-296M |
720p (60 / 59.94 / 50) |
|
SMPTE-125M |
480i (59.94) |
|
ITU-R BT.656 |
576i (50) |
|
HDMI |
1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
|
1080i (60 / 59.94 / 50) |
||
720p (60 / 59.94 / 50) |
||
480i / 576i |
||
Audio |
48KHz Sync |
|
|
General |
||
Power |
≤3W |
|
Working Voltage |
DC 6-18V |
|
Working Environment |
Temperature: 0°C-+70°C, Humidity:10%-90% |
|
Dimensions |
98×84×29 mm |
|
Net weight |
210g |
|
