Swit S-4610
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!

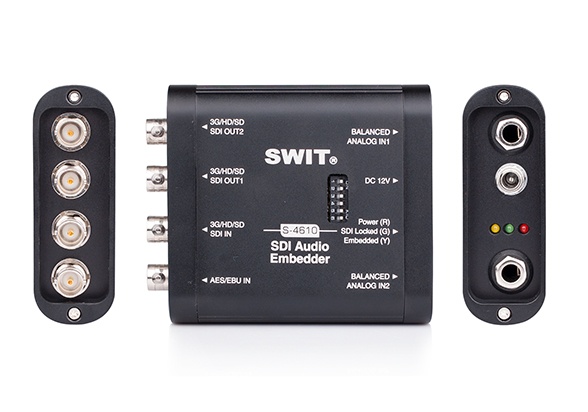

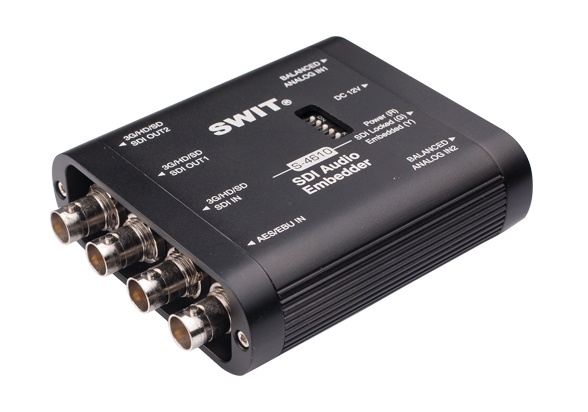

S-4610 is a portable Audio to SDI mini converter, supports 2-ch digital audio or analog audio to be embedded to the first 8 audio positions of SDI signal, up to 3Gb/s SDI.
S-4610 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.
FEATURES
- Portable Audio to SDI Converter
- 3G/HD/SD-SDI supported
- Embed audio to any 2 channels of SDI first 8-ch positions
- AES/EBU audio input and embed
- 6.35mm balanced audio input and embed
- 2x SDI output with new embedded audio
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
- Heavy duty aluminium housing

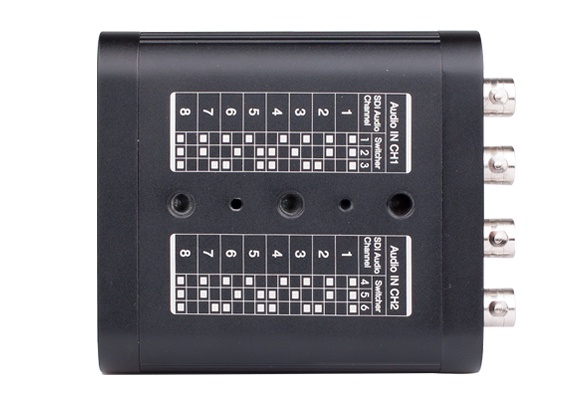

- Bottom screw threads for installing
|
Input |
||
BNC ×1 |
3G/HD/SD-SDI input ×1 |
|
BNC ×1 |
AES/EBU digital audio input ×1 |
|
6.35mm ×2 |
Analog audio (balanced) input ×2 |
|
|
Output |
||
BNC ×2 |
3G/HD/SD-SDI embedded output ×2 |
|
|
Video Formats |
||
SDI |
SMPTE-425M |
1080p (60 / 59.94 / 50) |
SMPTE-274M |
1080i (60 / 59.94 / 50) |
|
1080p (30 / 29.97 / 25 / 24 / 23.98) |
||
SMPTE-RP211 |
1080psf (30 / 29.97 / 25 / 24 / 23.98) |
|
SMPTE-296M |
720p (60 / 59.94 / 50) |
|
SMPTE-125M |
480i (59.94) |
|
ITU-R BT.656 |
576i (50) |
|
|
Audio Formats |
||
Digital audio |
Type |
AES/EBU |
Input level |
5Vp-p |
|
Sample frequency |
48KHz |
|
Analog audio |
Max input level |
+24dbu |
Bandwidth |
20Hz-20KHz |
|
|
General |
||
Power consumption |
≤3W |
|
Working voltage |
DC 6-18V |
|
Working environment |
Temperature: 0°C-+50°C, Humidity: 10%-90% |
|
Dimension |
98×84×29 mm |
|
Net weight |
235g |
