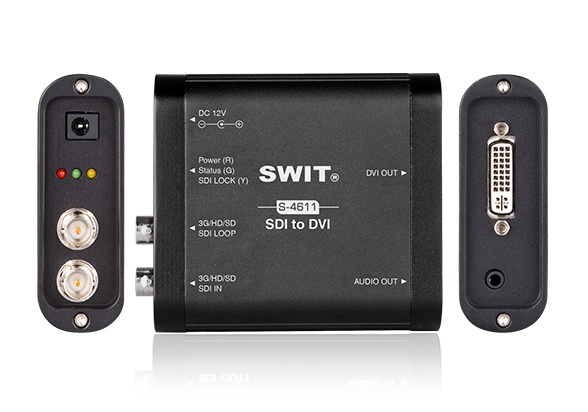

S-4611 is a mini converter for SDI to DVI conversion,(DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.

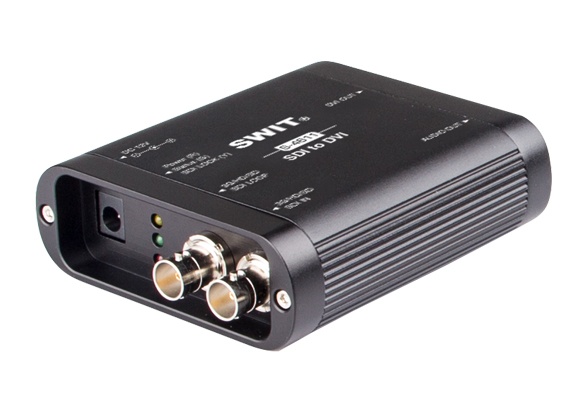

S-4611 is heavy duty housing designed, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installation.
FEATURES
- Portable 3G/HD/SD-SDI to DVI Converter
- 1 SDI input, 1 DVI output, and 1 SDI loop
- SDI audio output via 3.5mm socket
- Power/input/output status indicator
- Pole-tap 6-18V DC power input
- Heavy duty aluminium housing
- Bottom screw threads for installing
|
Input |
||
BNC ×1 |
3G/HD/SD-SDI input |
|
|
Output |
||
BNC ×1 |
3G/HD/SD-SDI loop output |
|
DVI-D ×1 |
Converted DVI output |
|
3.5mm ×1 |
SDI audio output |
|
|
Video Format |
||
SDI |
SMPTE-425M |
1080p (60 / 59.94 / 50) |
SMPTE-274M |
1080i (60 / 59.94 / 50) |
|
1080p (30 / 29.97 / 25 / 24 / 23.98) |
||
SMPTE-RP211 |
1080psf (30 / 29.97 / 25 / 24 / 23.98) |
|
SMPTE-296M |
720p (60 / 59.94 / 50) |
|
SMPTE-125M |
480i (59.94) |
|
ITU-R BT.656 |
576i (50) |
|
DVI |
1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
|
Audio |
48KHz Sync |
|
|
General |
||
Power |
≤3W |
|
Working Voltage |
DC 6-18V |
|
Working Environment |
Temperature: 0°C-+70°C, Humidity:10%-90% |
|
Dimensions |
98×84×29 mm |
|
Net weight |
209g |
|
