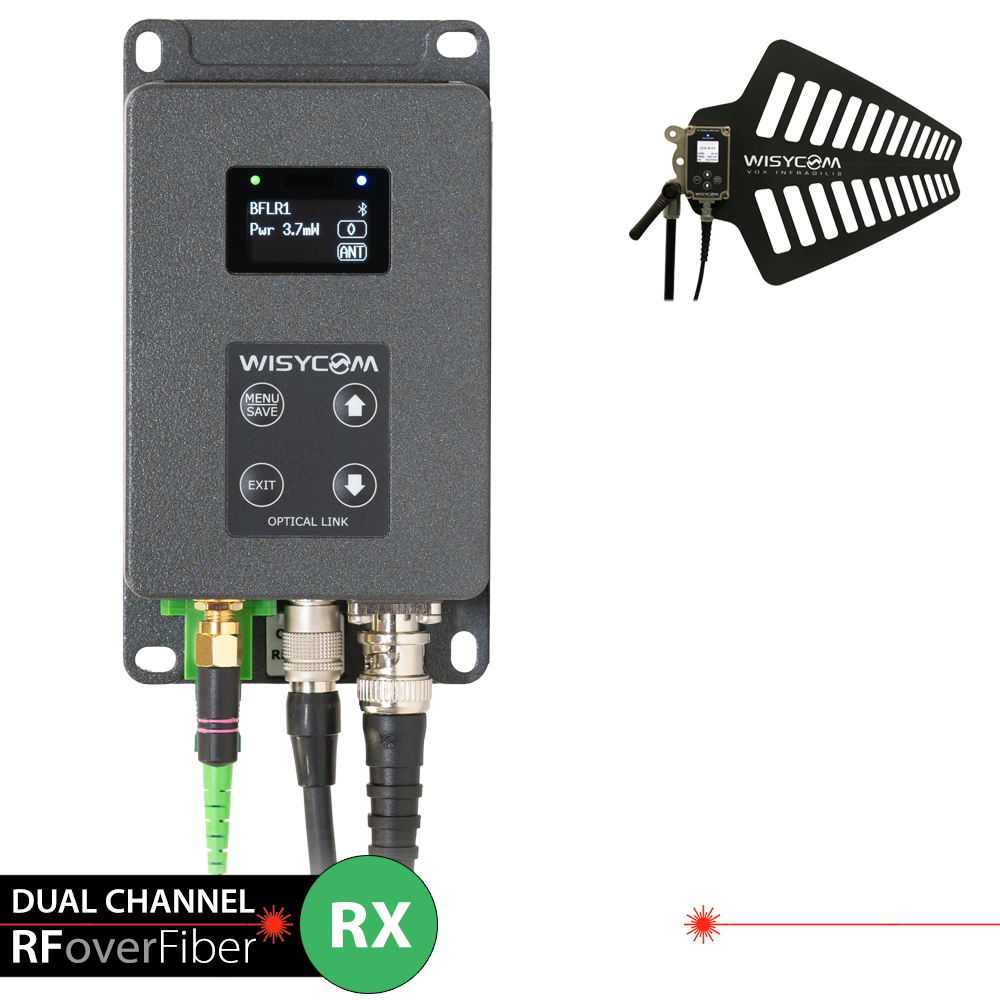

Wisycom BFL-R1 B-SC-BT2
Wisycom BFL-R1 B-SC-BT2
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
- Optical Fiber input connector: SC/APC
- RF output on BNC-female (N on request: contact us for special SKU)
- booster (+12Vdc, 200 mA max) for PAW power amp / LBP-LNP Antennae
- Optical Input range: -6dBm to +6dBm (0,25mW to 4mW)
- Wavelenght: 1300-1650 nm
- Power in 9-18 Vdc thru Hirose 4pin, standard PSU included
- Manageble via App thru Bluetooth interface (BT2)
- The unit is supplied power supply PSP15V1A2-H and Bluetooth antenna.
Please note: RFoF requires single mode fiber, with APC connectors (angled physical cut: green): e.g. SC/APC or LC/APC
BFL-R1 works great with
- BFL-T1 RF-o-F transmitter (its standard companion product, sold seperately)
- BFL-T2 dual channel RFoF transmitter (M0-D1 model: without DeMux)
- MAT288 8x Diversity Zone mixer/distributor
- LBP Power-Amp'd antenna (for remote'ing IEM's)
Often ordered with:

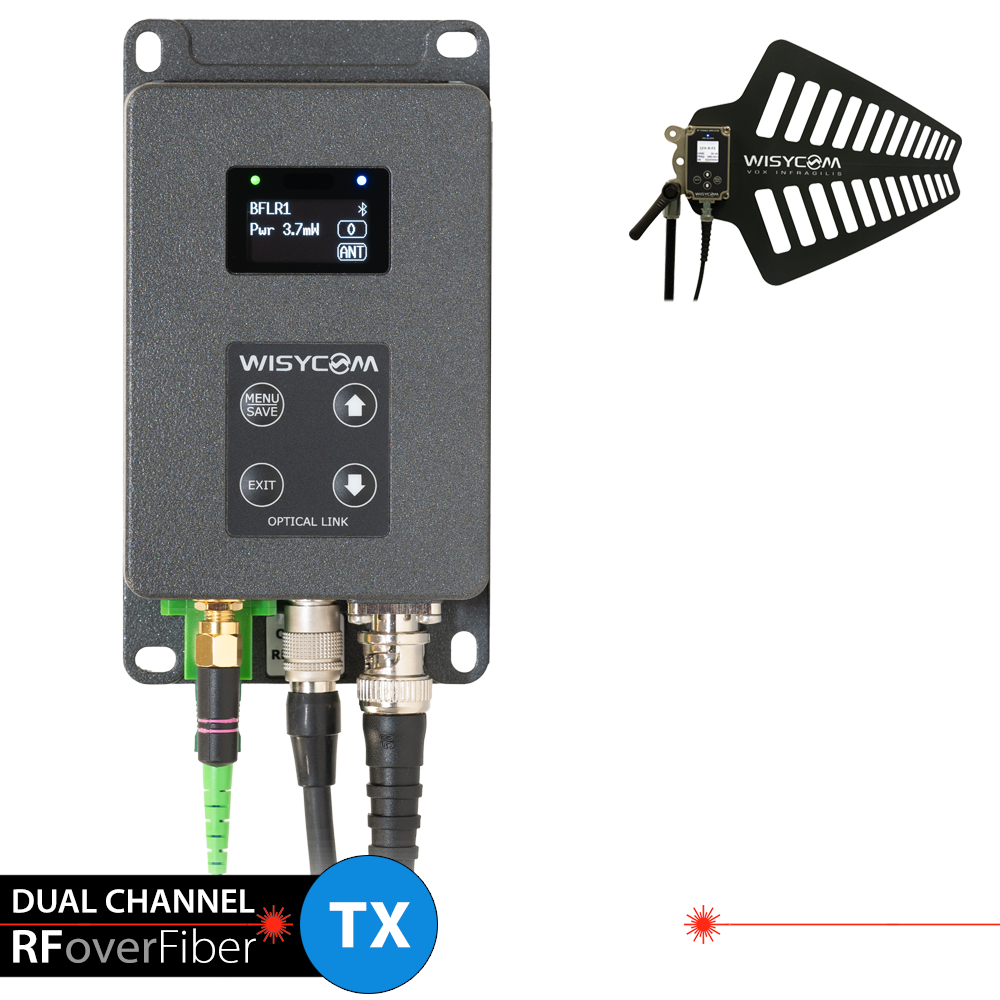

BFL-T1 is a single RF-over-Fiber Transmitter Module, for Europe, USA and UK (F1 Filter set), converting RF signal to Optical for easy and longrange (<10km) transmission over standard, low cost fiber.

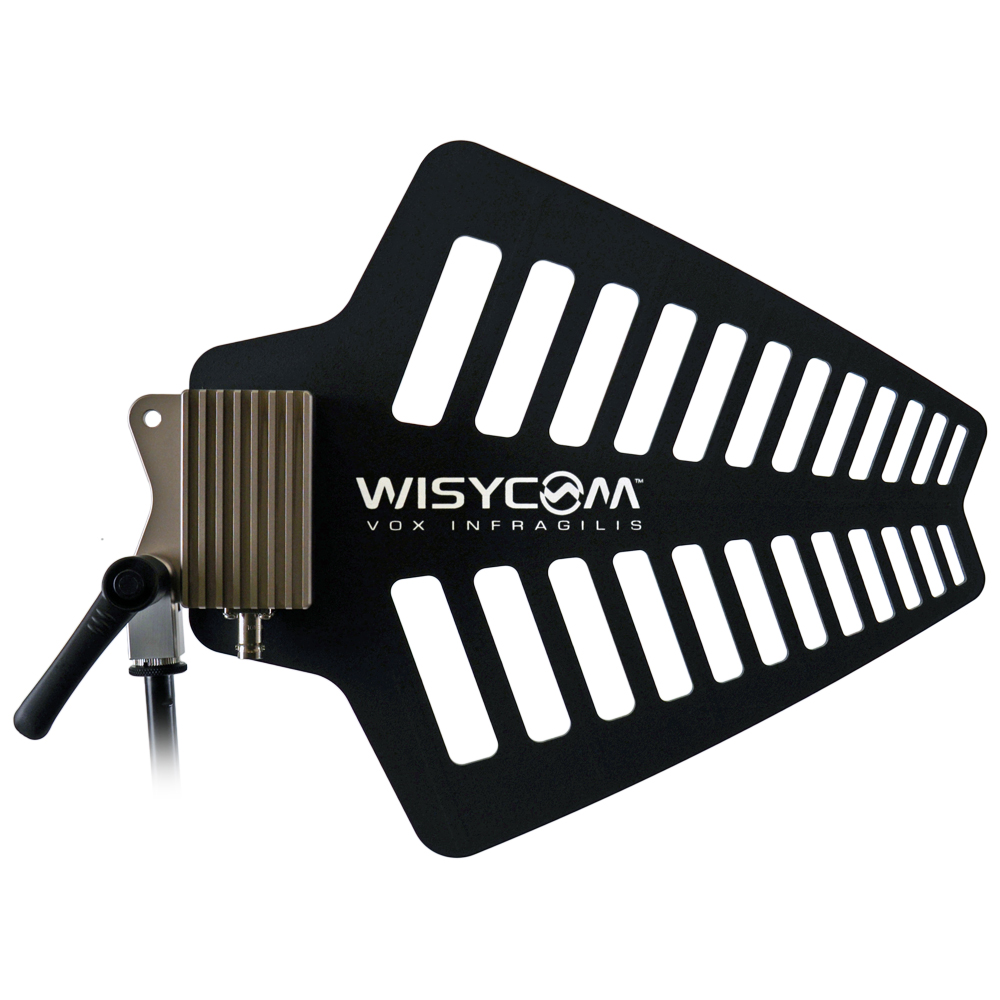

Wide-Band LPDA antenna with integrated 20dB Power Amplifier amplifier for up to 250mW output on IEM /IFB system.

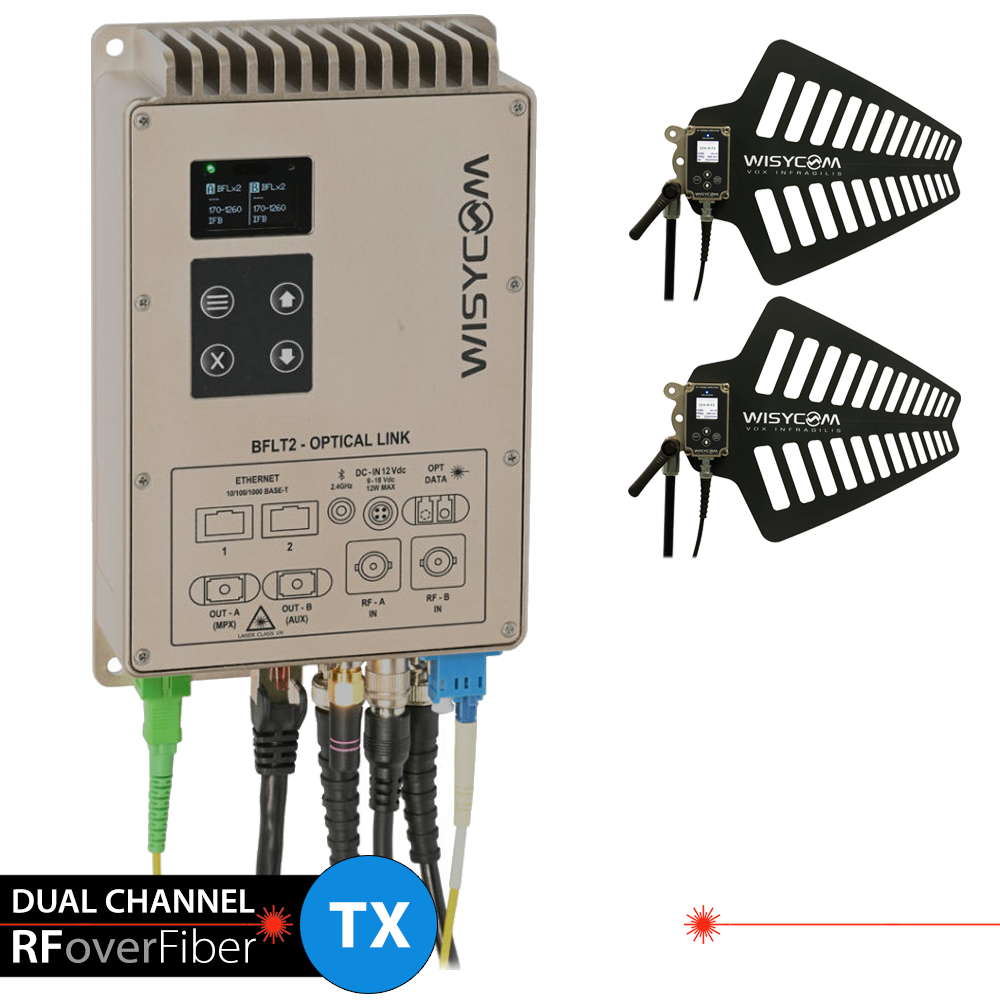

BFL-T2 is a dual channel RF-over-Fiber transmitter module, replacing traditional lossy COAX cable, converting RF signal from antenna or IEM transmitters into Optical signals for easy, convenient and longrange (<10km) transmission over reliable, low cost fiber.
Wideband (150-840 MHz) diversity combiner: - 8:1 OR 8:4 or 2 x 4:1 (diversity). Programmable attenuator on input.
