Wisycom BFLT1 F1-B-SC-BT2
Wisycom BFLT1 F1-B-SC-BT2

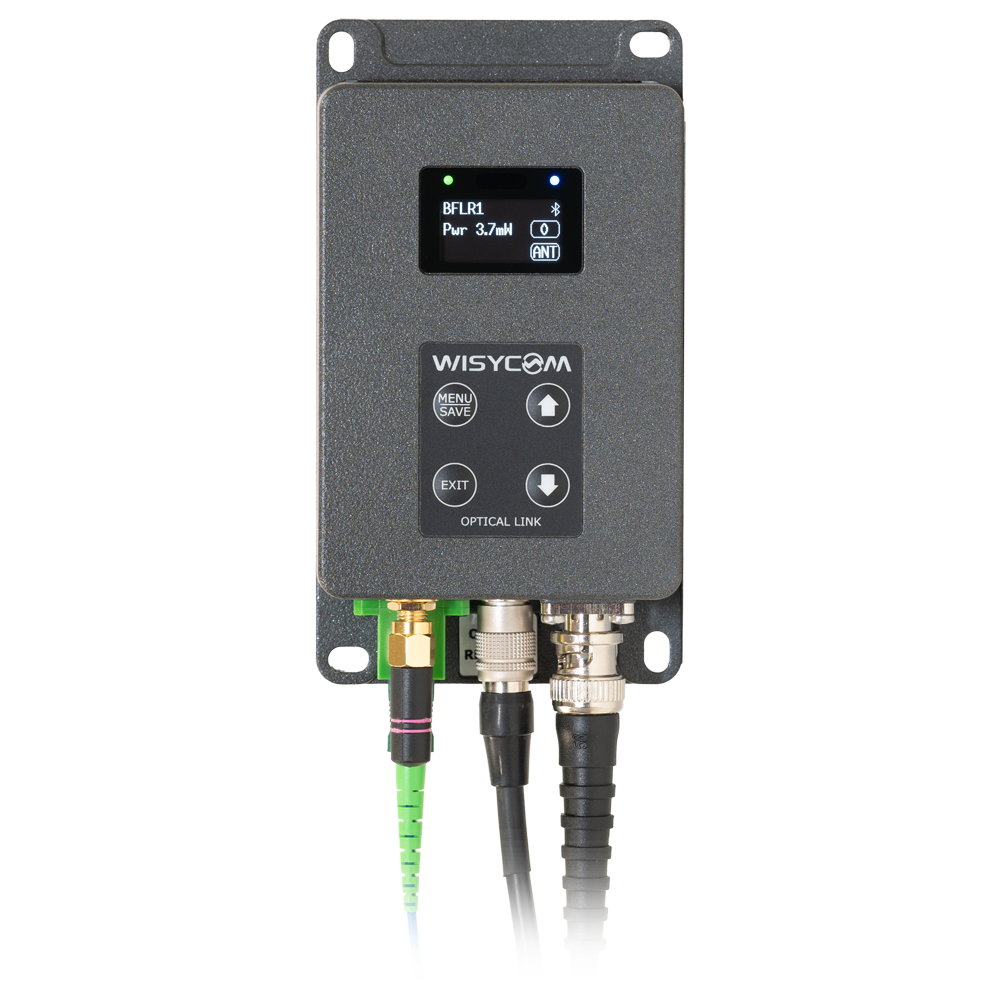

BFL-T1 is a single RF-over-Fiber Transmitter Module, for Europe, USA and UK (F1 Filter set), converting RF signal to Optical for easy and longrange (<10km) transmission over standard, low cost fiber.
€1,180.00
€950.00
19%
discount
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K036789.2

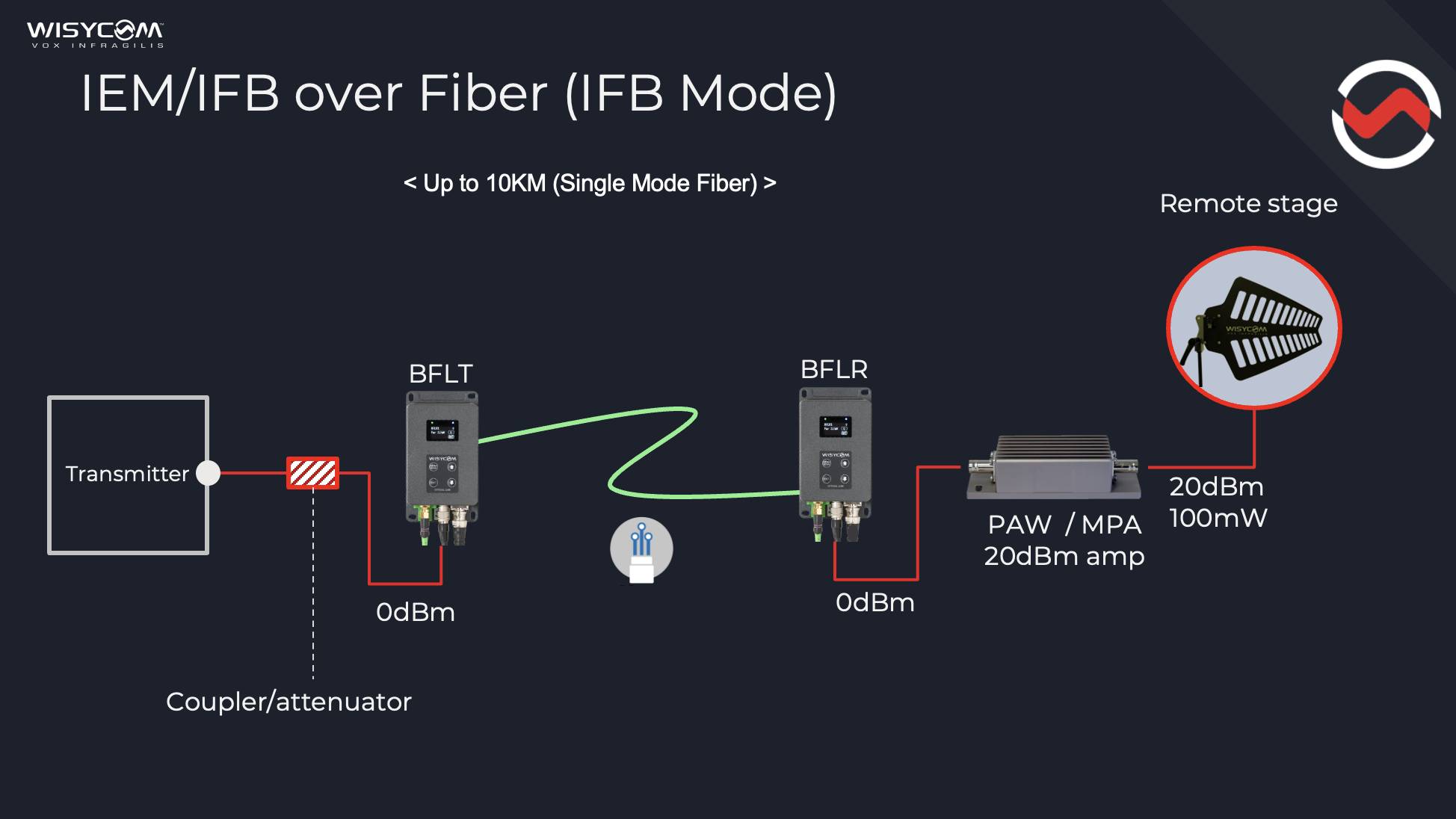

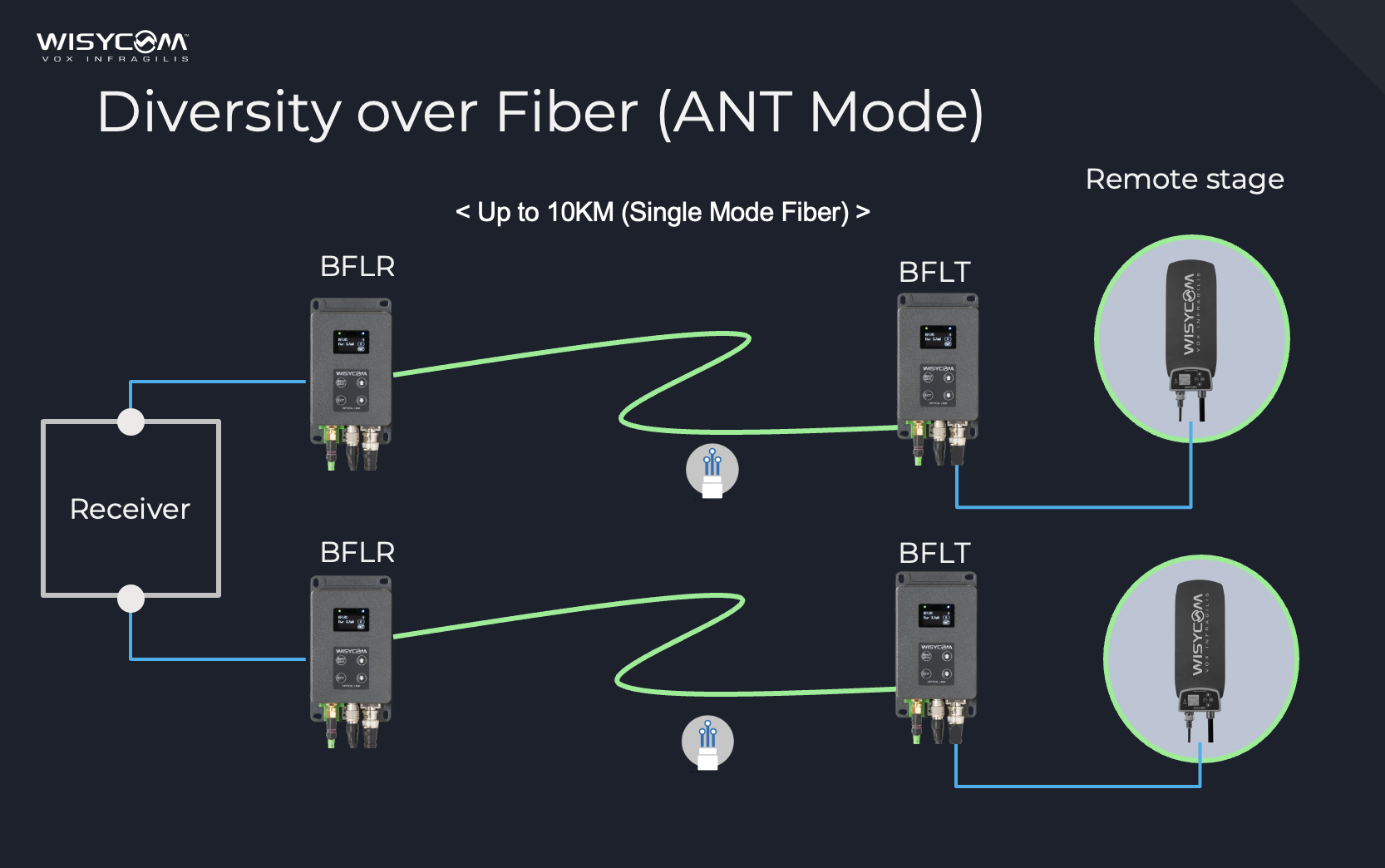

The BFL-T1 transmitter and its accompanying BFL-R1 receiver (sold seperately), can be deployed in: ANT mode: to receive signal from an antenna placed on a remote area IFB mode: to send low power IFB/IEM signal over fiber to a remote area
Specifications:
- Wideband Range 170-1260 MHz
- integrated, remote controllable filter F1 version: Tunable filter 470 ÷ 758 MHz (UHF), 40MHz of Bandwidth, Selectable HighPass Filter: 170/470/518/566/960 MHz Selectable LowPass Filter : 608/698/1160/1260 MHz Fixed Filter 820-832MHz, 733-758MHz, 940-960 MHz
- BNC-female input (N on request), with power for active antenna ("Booster": +12Vdc, 150 mA max, suits pretty much any active antenna known incl. Wisycom, Shure and Sennheiser).
- SC/APC fiber output
- Power 9-18 Vdc thru Hirose 4pin, standard PSU included.
Works with:
- BFL-R1 companion RF-o-Fiber receiver, for single, point to point links
- BFL-R2 dual channel RFoF receiver (M0-D1 model: without DeMux)
- MATF 8x Diversity Zone mixer/distributor with appropriate RFoF Non-DeMux input modules
- MAT288 8x Diversity Zone mixer/distributor (with matching BFL-R1 units)
- MRK16 16 channel 1U rack receiver, DANTE enabled, for wireless mic TX
