Yamaha CTL-DM7
Yamaha
Yamaha CTL-DM7
Flexible control expansion for the DM7 and DM7C professional digital consoles, which gives the user increased ability to perform key actions quickly.
€4,650.00
€3,960.00
15%
discount
- Ordered before 15:00, shipped the same day, provided products are in stock.
- Have you seen a better price? Let us know and we'll try to match it. To Price-Match Form.
- Tax free for customers outside the Netherlands (with a valid VAT number).
- Do you have a question about this product? Chat with us and we'll tell you all about it!
Product number:
K037386

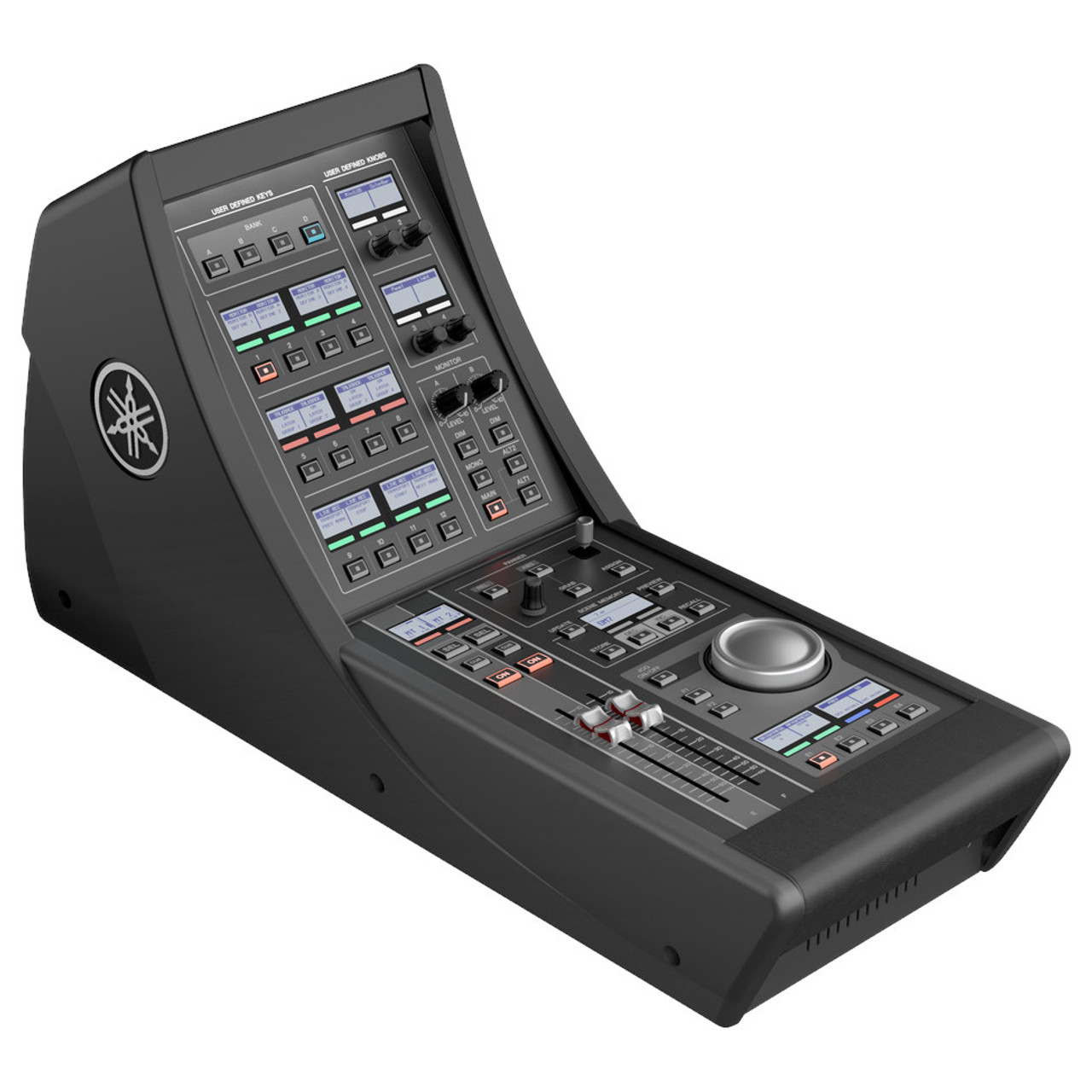

The CTL-DM7 is a flexible control expansion for the DM7 and DM7C professional digital consoles. By adding an additional arm to your console, the user has increased ability to perform key actions quickly. The expanded user interface includes 4 additional banks of 12 user defined knobs, bringing a total of 48 independent user defined knobs. The CTL-DM7 is also equipped with a programmable jog wheel, 2 assignable faders, and quick access to scene controls, as well as immersive and surround controls. Broadcast and theater software packs are also included.
Yamaha CTL-DM7 Features
- Expanded User Interface
- 4 additional banks of 12 UDK - total of 48 independent UDKs
- 4 additional UDK’s at bottom
- 4 User Define Knobs
- Quick access to scene controls
- Immersive and Surround Controls
- Programable Jog Wheel
- 2 assignable faders (E/F)
- Flexible and dedicated Monitor Controls
- Includes Broadcast and Theater Packages

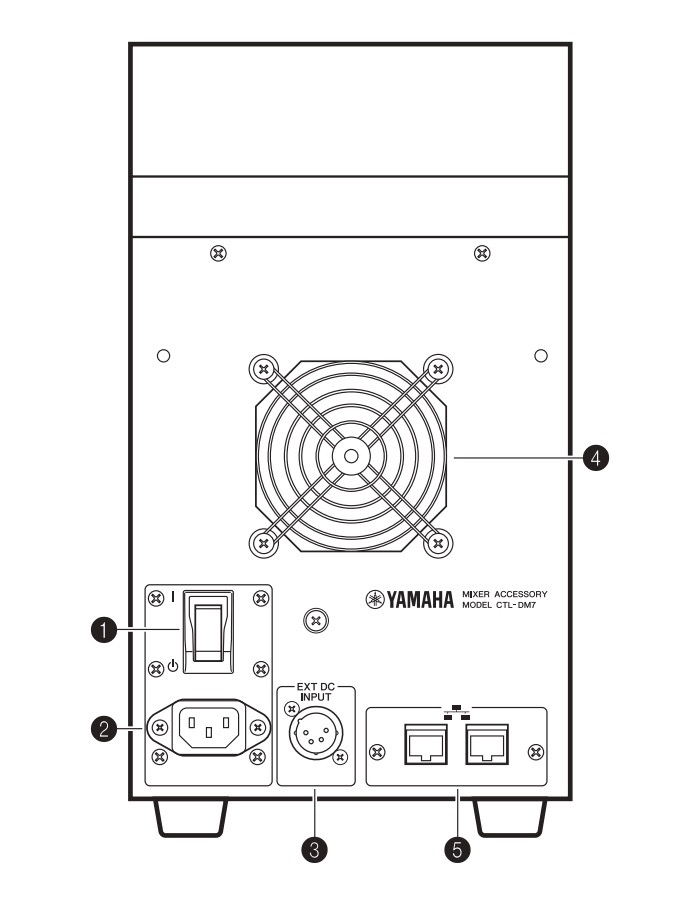

Power Requirements: AC INPUT: 100-240 V, 50/60 Hz; AC power input: V-lock type; EXT DC INPUT: DC 24 V±1.2 V, 0.78 A or higher, XLR 4-pin chassis connector*1 Power Consumption: 20W Dimensions (WxHxD)
- - DM7 CONTROL only: 7.52×12.72×22.12" (including link brackets and screws, and rubber feet)
- - Linked with DM7: 38.3x12.75×22.2" (including side pads and rubber feet)
- - Linked with DM7 COMPACT: 25.51×12.75×22.2" (including side pads and rubber feet)
