Designed for small to mid-sized live sound, corporate events, houses of worship, theatre and broadcast, the Yamaha DM5 Compact feature 40 in/out of industry-standard Dante networking at 96 kHz, 24 mix busses, 12 matrices, 12 DCAs, two stereo busses, 18 channels of USB I/O, and Bluetooth audio playback.

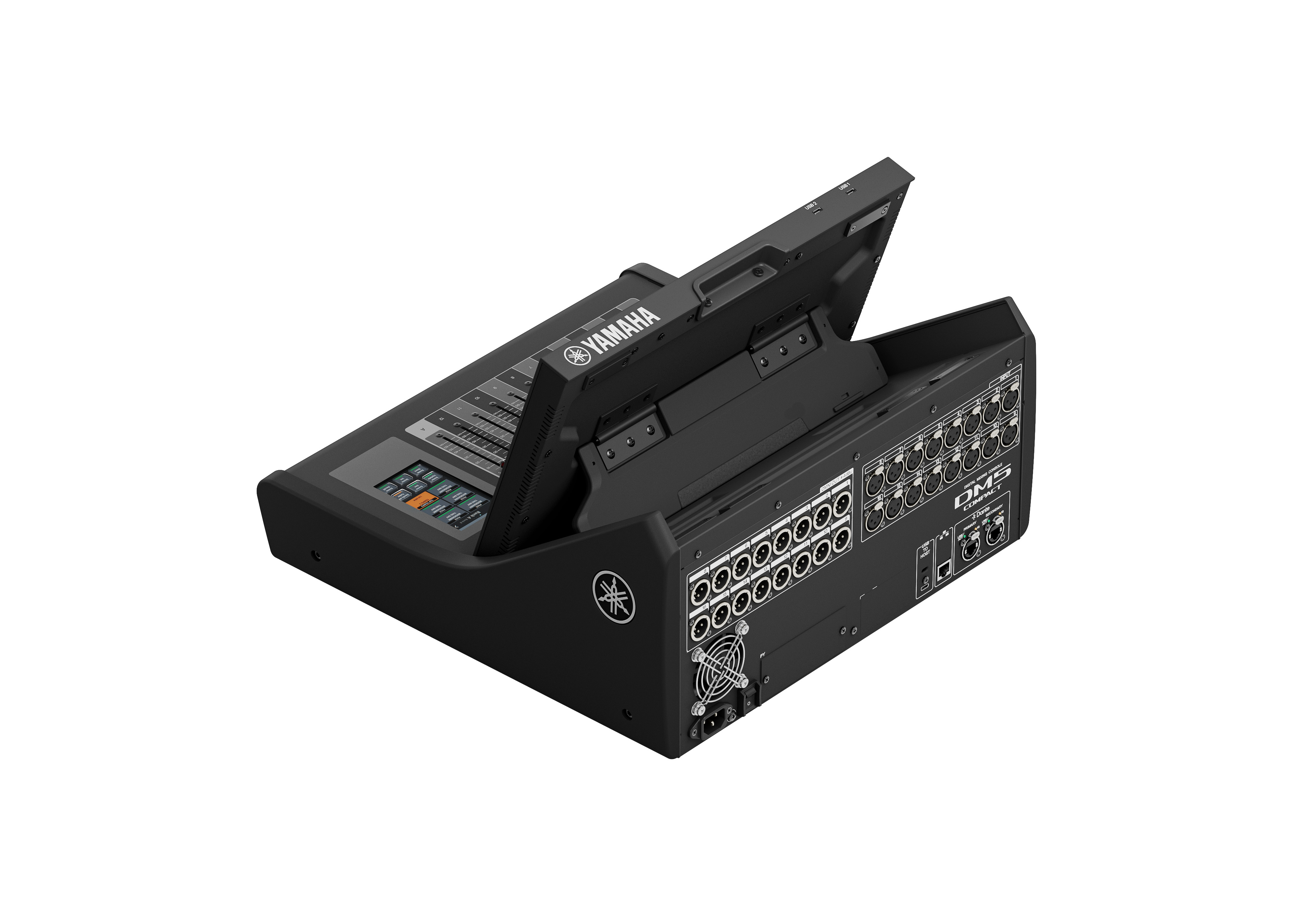

The DM5 Compact has 16 analogue inputs/outputs and 48 input channels, with a single fader bay and screen in a half-width chassis. The main display can be adjusted to four different angles. 16 slot onboard effects rack with 43 versatile, high quality effects, a PY series card slot for further processing or additional I/O and a secondary, customisable touchscreen. Optional extended feature packages for broadcast and theatre applications are available, as well as additional Dan Dugan auto mixing.
Specs:
- 48 mono input channels
- 24 mix buses
- 12 matrix buses
- 2 Stereo buses
- Dante primary / secundary
- Sampling frequency: 96 kHz / 48 kHz
- 13,3" tiltable multi touch screens
- 4,3" multi touch Utility scherm
- 13 x 100 mm touch-sensitive faders
- 4 user defined knobs,
- 1 Touch & Turn
- 12 DCA Groups,
- 12 mute/dim groups
- 16 effects,
- 24 PEQ/GEQ
- 32 Premium effects with optional PY-DSP
- 12 channels Dugan Automixing (Expandable to 48 by optional DEK-DUGAN)
- Dante-interface: 64 inputs / 64 outputs
- Local I/O: 16 Mic/Line inputs / 16 outputs
- USB-C 2.0 Audio-interface: 18 inputs / 18 outputs
- Dante-interface: 64 inputs / 64 outputs B
- luetooth audio playback
- 1 PY Slot
- DAW-Remote mode
- Size (B x H x D): 446 x 235 x 441 mm 19" with optional RK5
- Weight: 13,3kg
- Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
