Yamaha DZR 12

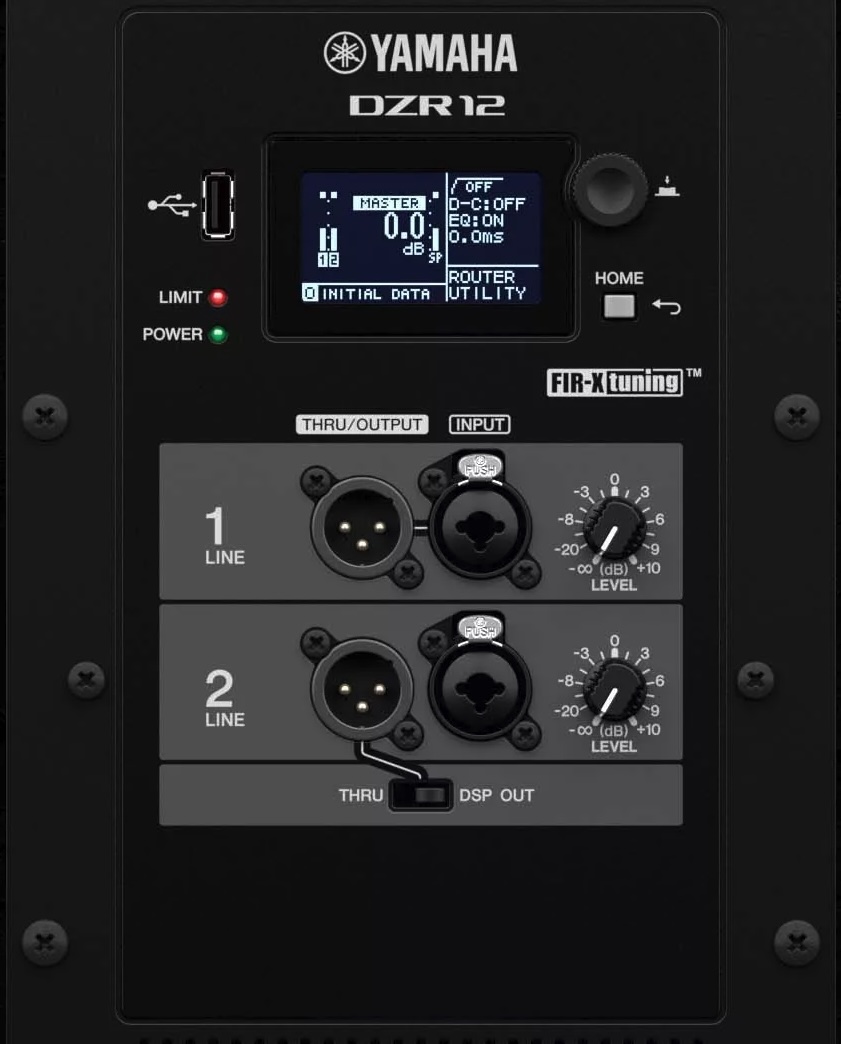

They benefit from 96KHZ DSP processing, advanced FIR-X Tuning filtering technology and 2-channel inputs allowing, among other things, the connection of microphones. At the back an LCD screen to access all the information you need regarding settings, volume levels and more. The DZR12 also features a constant directivity rotary horn for a variety of installation possibilities.

Specs:

  Type: 2-way speaker type Bass-Reflex Loudspeaker speaker: 12 "woofer with 3" spool High frequency loudspeaker: 1 "compression tweeter with 2" spool Frequency response: 39 Hz - 20 kHz Sound pressure level: 139 dB Amplifier type: class D Power of the amplifier: 1300 W RMS / 2000 W peak Woofer: 920 W RMS / 1000 W peak Tweeter: 380 W RMS / 1000 W peak Cover: 90 ° x 60 °, swiveling (H x V) Separation frequency: 1.8 kHz (FIR-X) Input Connectors: 2 x XLR / TRS combo Output connectors / Thru: 2 x XLR sampling frequency: 96 kHz and FIR filter Handles: 2 x cast aluminum Angle for backstage: 50 °, symmetrical Headers: 2 x 35 mm (0 ° or 7 °) Fixing points: 12 x M10 Dimensions: 410 x 646 x 394 mm (W x H x D) Weight: 21.4 kg
