Zaxcom DCiRX defines a new class of professional audio receivers designed for filmmakers, broadcasters, content creators, and live production professionals who cannot afford compromise.

Powered by Zaxcom narrow-band direct conversion design, DCiRX operates in the  UHF spectrum 470 to 698 MHz.

DCiRX can receive UHF audio from a single mono or stereo transmitter while simultaneously supporting a direct input for lavalier or 48V phantom powered microphones.

A built-in 4-track recorder captures up to 3 ISO tracks plus 1 mix track with timecode in 32-bit float or 24-bit fixed. A USB-C interface connects to mobile devices, computers, and USB cameras, delivering 4 channels of audio with timecode.

Dedicated outputs include balanced TA-5 for professional cameras, timecode, and headphone monitoring for confidence in the field.

DCiRX combines receiver, recorder, mixer, and USB interface in one compact unit.

*WARNING: Check microphone compatibility before turning on the DCiRX. NEVER apply 48V to standard 5V bias power lavalier microphones. Applying 48V will likely damage the microphone.

INPUT CONNECTIONS

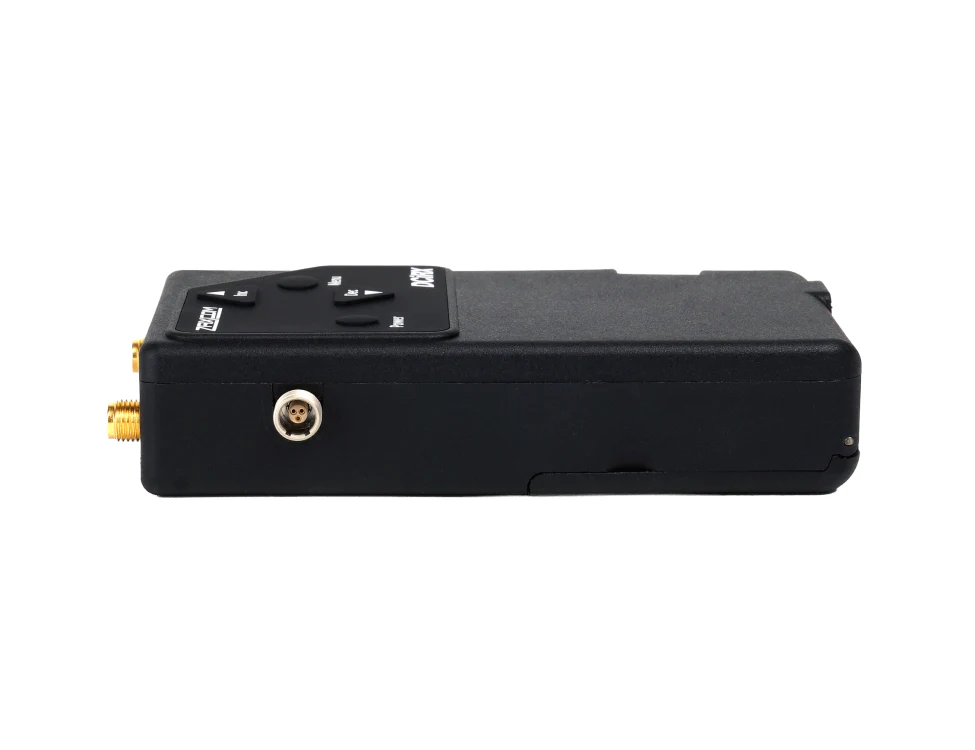

• Mic Input: 3-pin Lemo (5V unbalanced or 48V balanced/dynamic)

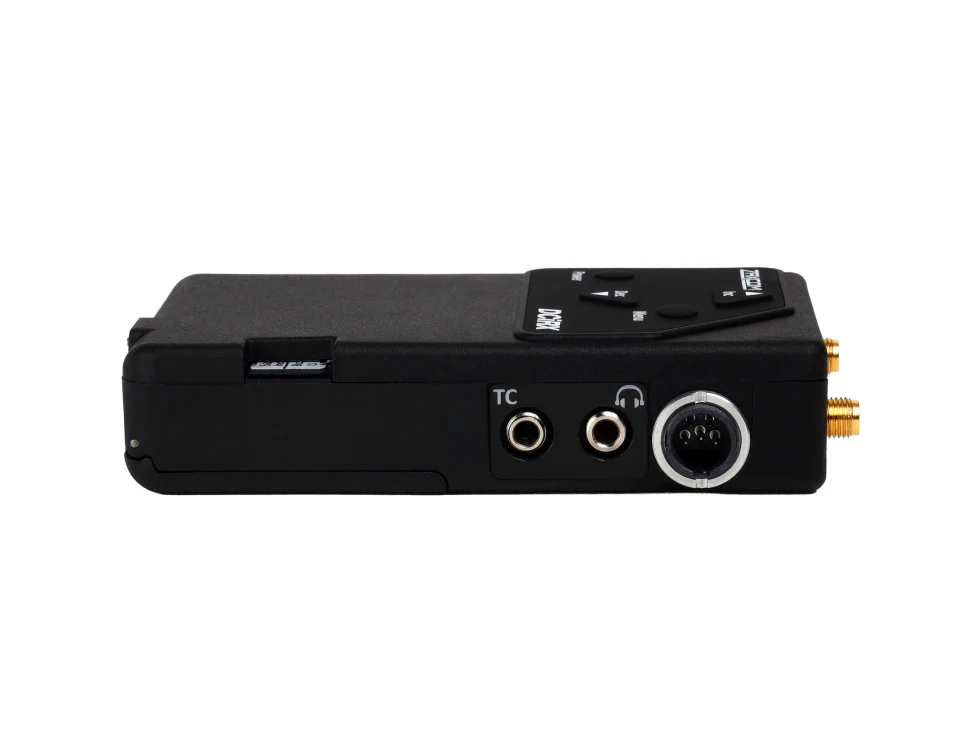

• Analog Audio Out: TA-5 (mic or line level)

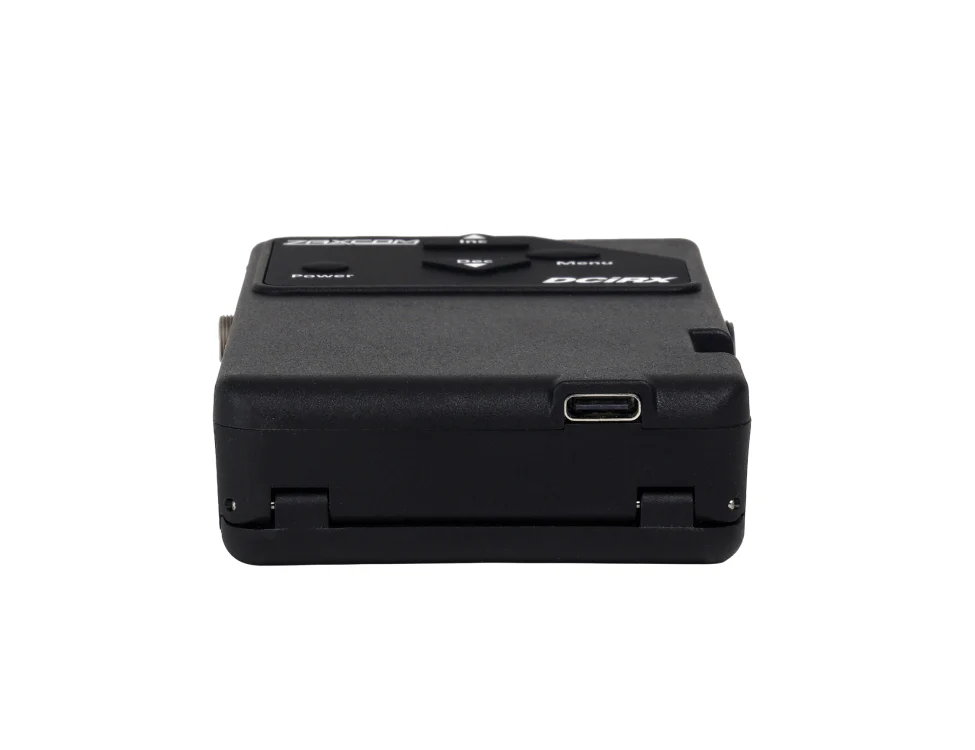

• USB-C: audio interface, power, and firmware updates
• Headphones: 3.5mm locking connector
• SMPTE Timecode: 3.5mm locking connector

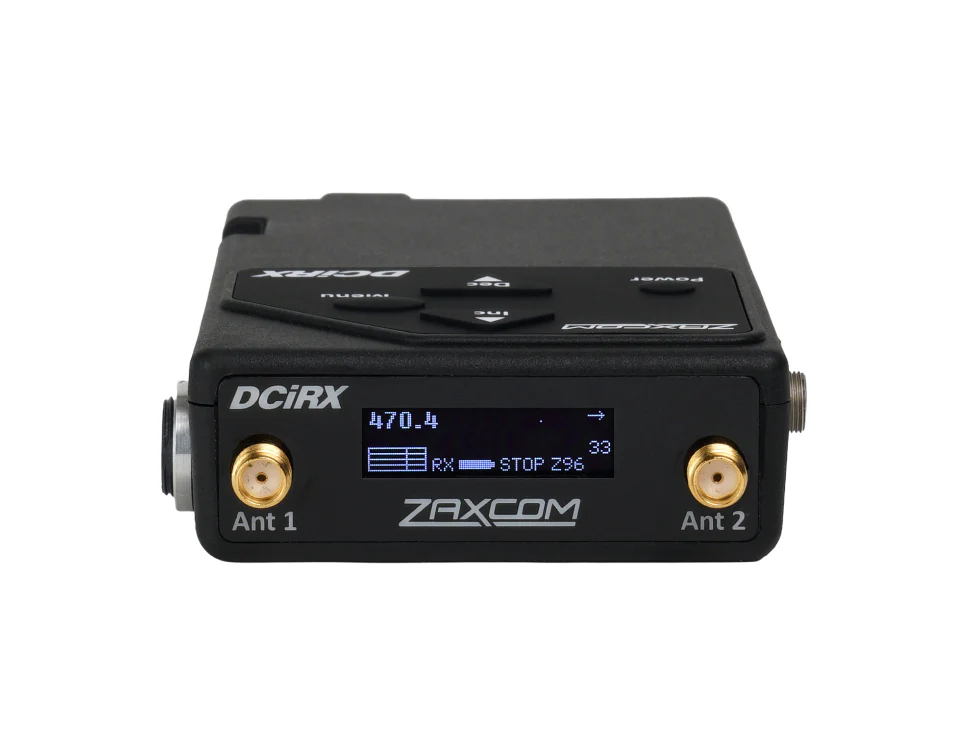

• Dual SMA connectors: antennas
• OLED Display

POWER OPTIONS

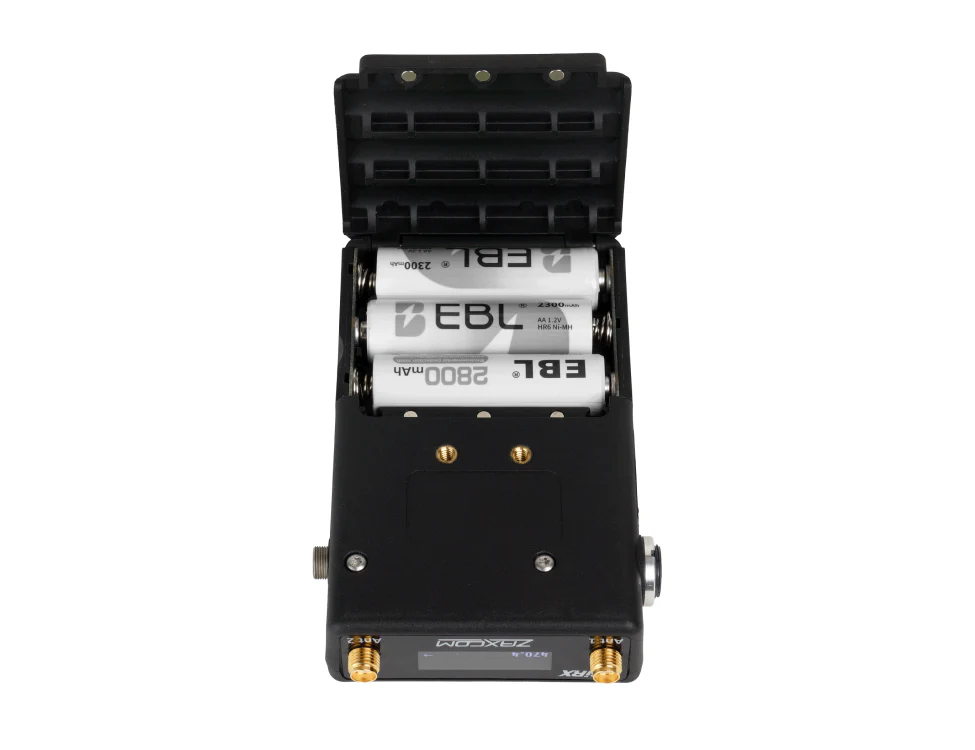

Powered by 3 standard AA batteries

• Li-Ion Battery Life: Up to 7 hours
• NiMH Battery Life: Up to 5 hours
• Alkaline Battery life: Up to 3 hours (not recommended)

USB-C; DCiRX can be powered by the USB-C input

UNIVERSAL MOUNTING

• Designed for all cameras, sound bags, mobile rigs, and discrete placements.

FEATURES:

• Professional Digital Wireless Receiver
• Narrow-band Direct Conversion: a newly designed receiver method
• Operates in the UHF Spectrum 470 to 698 MHz
• Supports a single mono or stereo UHF audio transmitter from Zaxcom bodypacks, plug-ons, camera links, and handhelds
• Simultaneously supports 1 wireless transmission and 1 microphone input for lavalier or 1 external microphone
• Supports 5V unbalanced or 48V balanced/dynamic phantom power*
• A dual balanced 2-channel output supports both mic and line level audio, adjustable up to +12 dBu
• A tunable tracking front-end filter, adjustable in 1 MHz steps
• Automatic RF frequency scans
• ZHD Modulation
• Stand-alone Receiver
• Stereo Link Receiver
• IFB Receiver
• Encrypted audio
• 32-bit float or 24-bit fixed broadcast WAV  internal recording
• Simultaneous wireless reception and 32-bit or 24-bit fixed internal recording
• 4-track internal recording; 3 ISO tracks plus 1 mix track (32-bit float or 24-bit)
• USB-C Audio Interface; 4-channel USB-C audio interface for connections to mobile devices, computers, or USB cameras
• Wireless Receiver and Preamp for Computers; record directly into DAW
• Timecode: Internal generator or receives timecode embedded in the wireless transmission; SMPTE TC output
• Compatible with Blackmagic Camera ProDock
