Overview
VTX1 is the next evolution in IFB transmission combining two types of frequency bands and enhanced features including encrypted audio, timecode, internal recording, and remote capabilities all in one device, making it the most versatile IFB system for any project.
Two Frequency Bands are Better than One
VTX1 is engineered to transmit both VHF and 2.4 GHz frequency bands for ultimate performance.
The VHF turning range is 192-217 MHz with a 25 kHz RF frequency step. VHF offers two user-selectable operating modes: FM analog and a fully encrypted 100% digital modulation mode. No matter which mode, VTX1 transmits high quality audio to VHF compatible devices including the Zaxcom VRX1.
With its 2.4 GHz frequency band, VTX1 features ZaxNet giving users the ability to send IFB audio, timecode, metadata, and remote control Zaxcom compatible transmitters and receivers.
Through ZaxNet, remote adjustments can be made to the frequency, pre-amp gain, transmitter output power, and put the unit in record, playback, or stop modes – eliminating the need to approach the talent to adjust the device. Better yet, ZaxNet transmits over a single 2.4 GHz RF channel which can be used license-free in almost any country.
Compatibility
VTX1 is compatible with the Zaxcom VRX1 receiver in VHF FM analog or digital modulation modes.
VHF FM analog audio is also compatible with Comtek receivers and other products operating in the 192-217 MHz frequency range.
Known compatibility:
• Comtek BST 75-216
• Comtek BST 25-216
• Comtek M-216
Encrypted Audio
The VHF digital modulation mode and 2.4 GHz audio is fully encrypted, keeping transmissions private and secure.
The VHF FM analog mode does not provide encrypted audio.
Internal Recording
Audio can be simultaneously transmitted and internally recorded to a memory card that includes timecode. A microSD card slot allows audio to be recorded directly onto the instantly removable card as a backup or reference for post.
Files are recorded using MARF (Mobile Audio Recording Format), a lossless fault-tolerant recording system that eliminates file corruption common to recordings caused by power loss or early card removal.

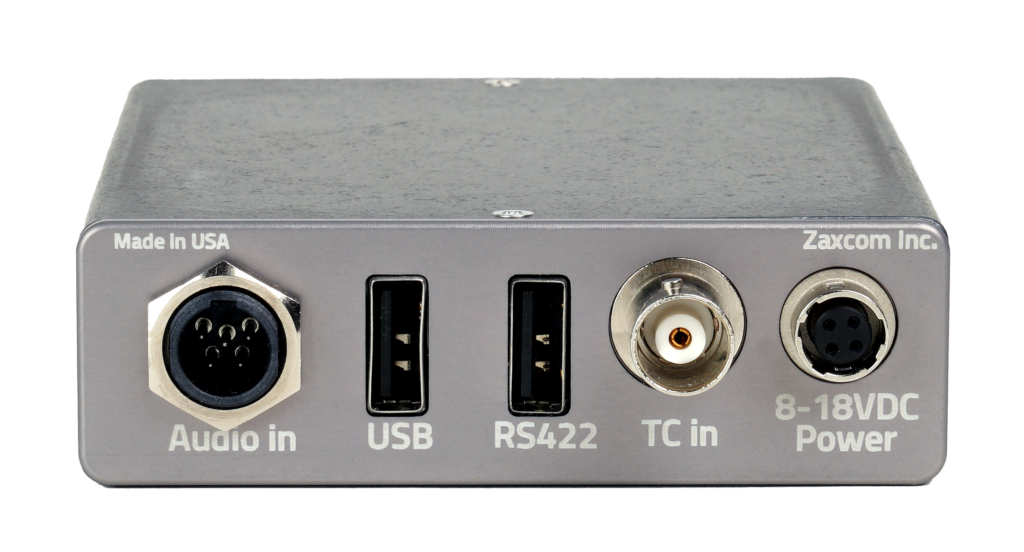

Inputs
A TA5 audio input offers a balanced stereo line level or sample rate conversion AES. The BNC connector provides a timecode input while the USB input allows for software updates.
